EURO SILVERADO – 6 WHEELER

EQUIPMENT AND DIMENSIONS

PDF

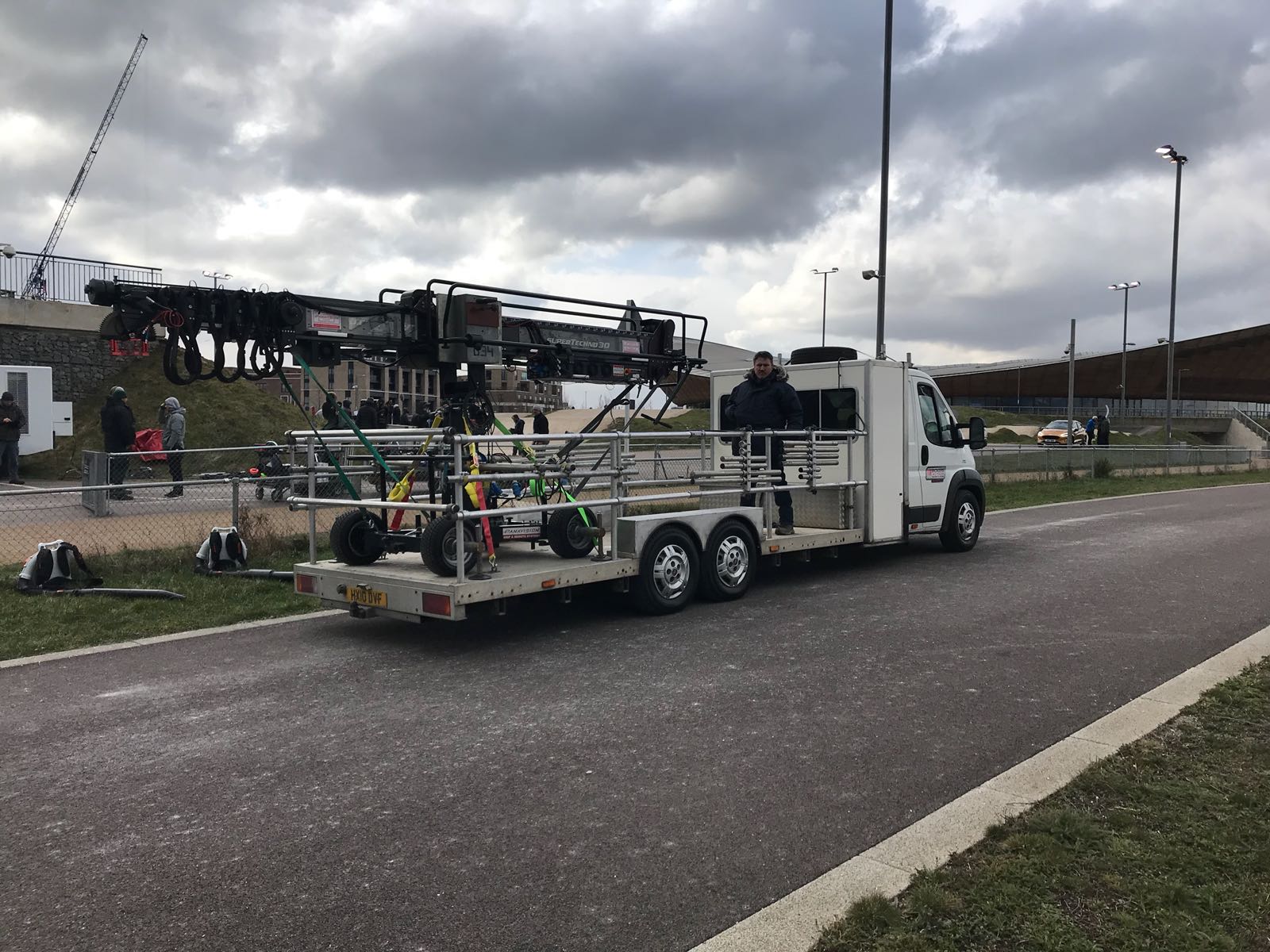

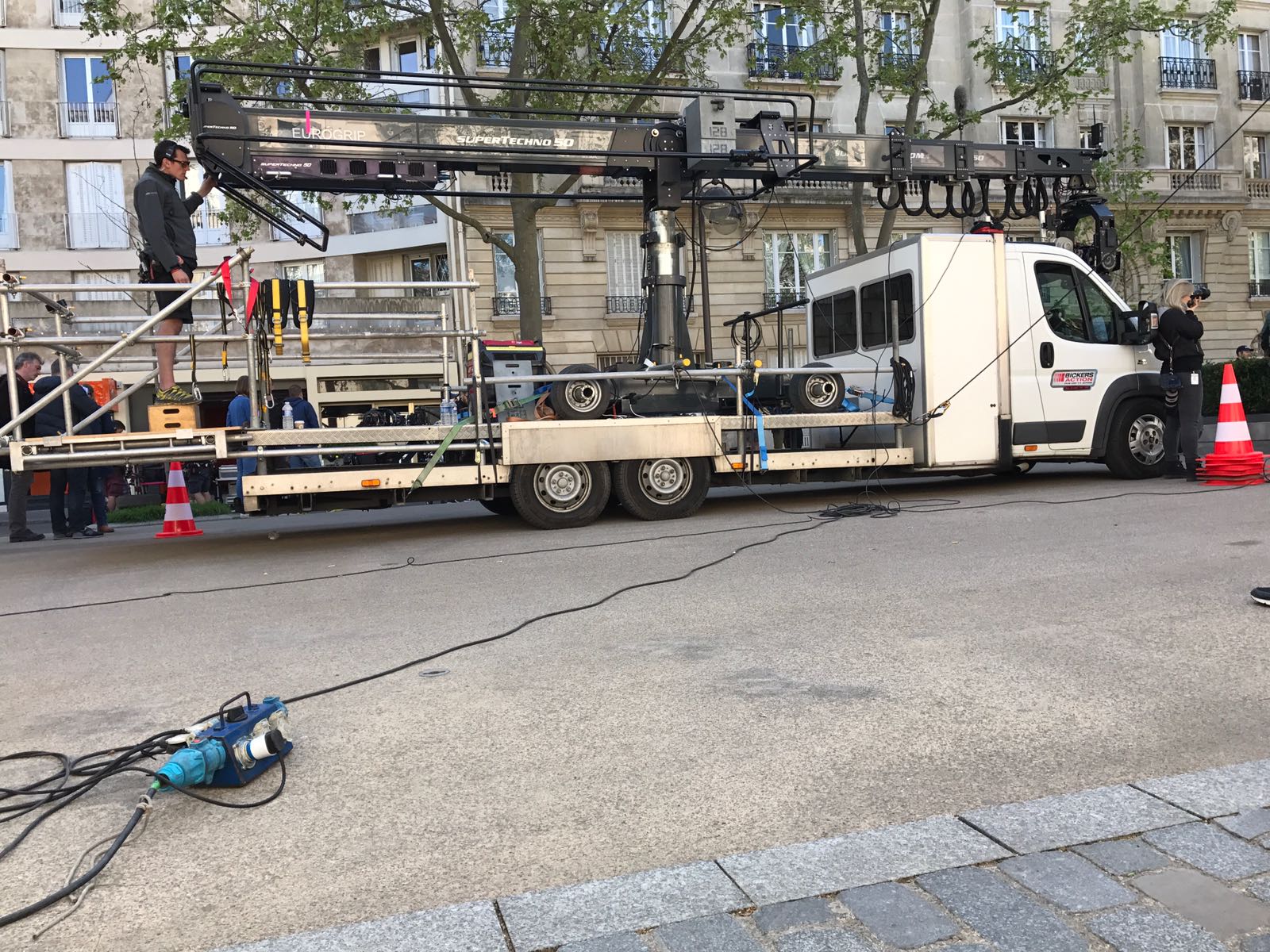

The Euro Silverado” 6-wheeler Tracking Vehicle is a camera crane carrying and All-Round Tracking Vehicle. It has the Lowest and Biggest Rear Working Platform at 500mm height and is 5.2m in length. Gross Weight of 5500kg allowing good weight carrying capacity of Crew, Rigs and Equipment. Automatic transmission and 2 Wheel Drive. It can carry 8 crew on the rear deck, 3 inside in the Crew cab plus driver.

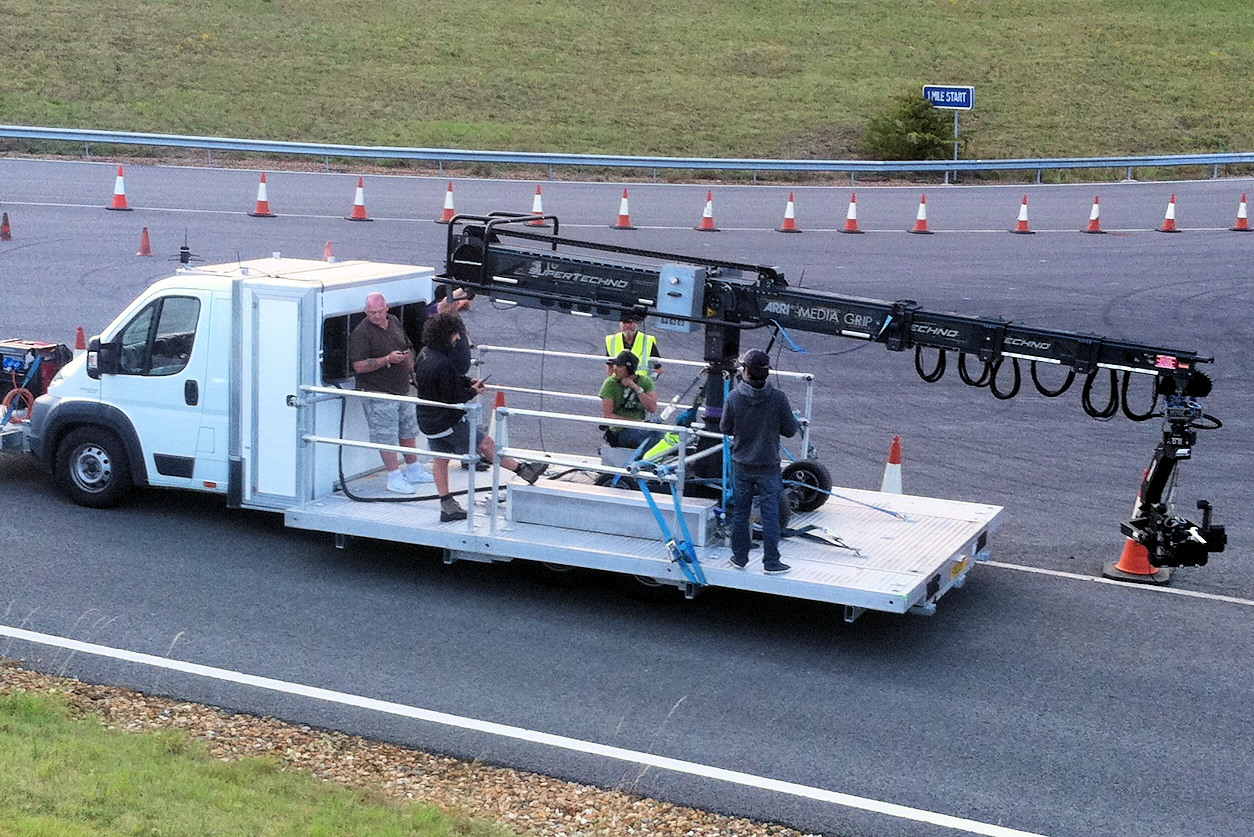

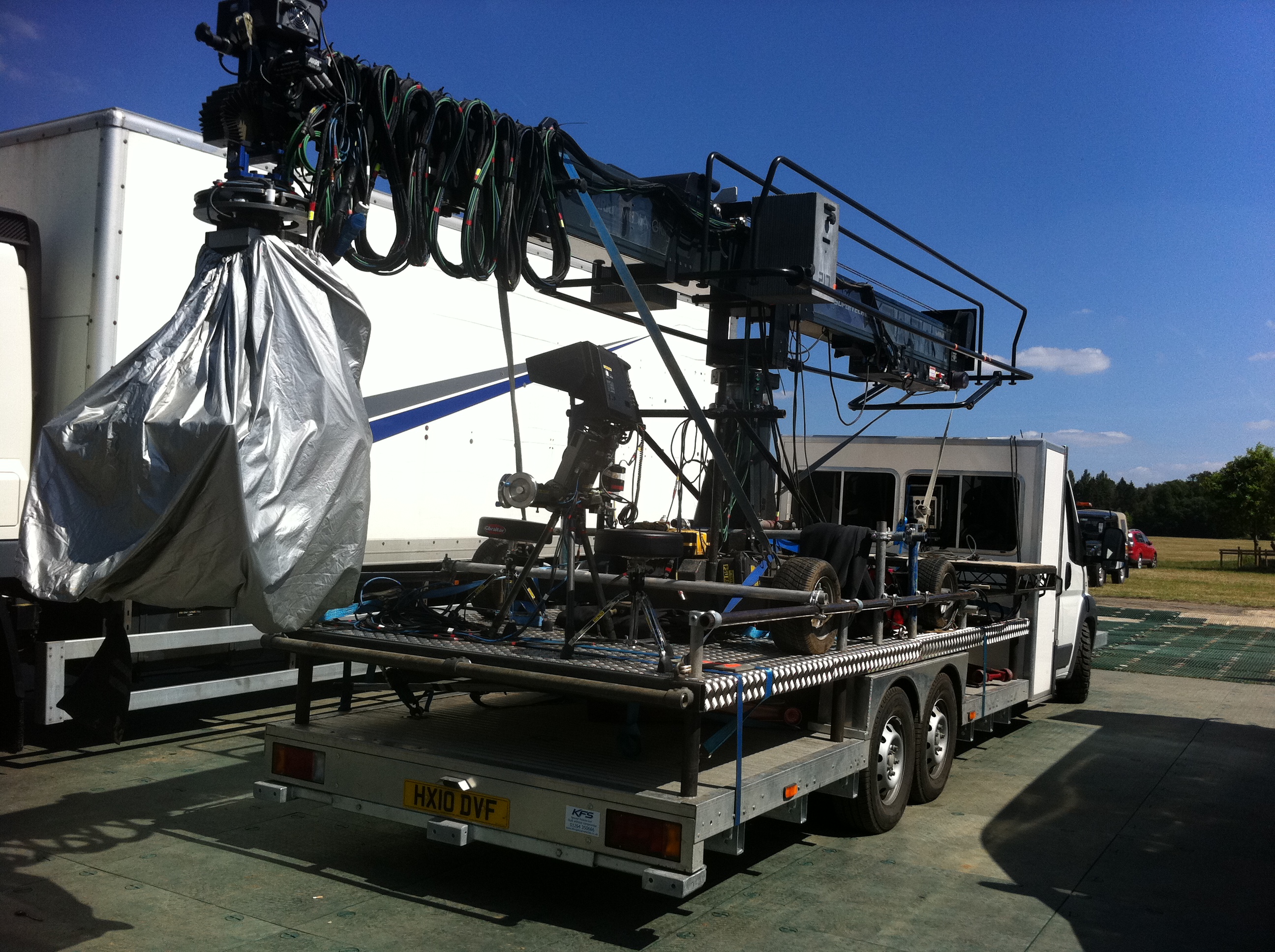

The Universal Floor Fixing which can be adapted to suit most Camera Cranes including their complete dolly bases, for example the Supertechno 30ft can be mounted in a fully built mode in a matter of a few minutes, It has many rigging points and fitted with scaffold safety rails. Large Additional Side Platforms are available for both sides which are easily fitted, doubling the size of the working platform. It can also be used as a Static camera crane positioning Base to carry up to 50ft Technocrane (in the same way as a Taurus Crane Base is used is used) Taurus Crane Base.

Driven by one of our Precision Tracking Vehicle Drivers

Standard Equipment Optional Equipment

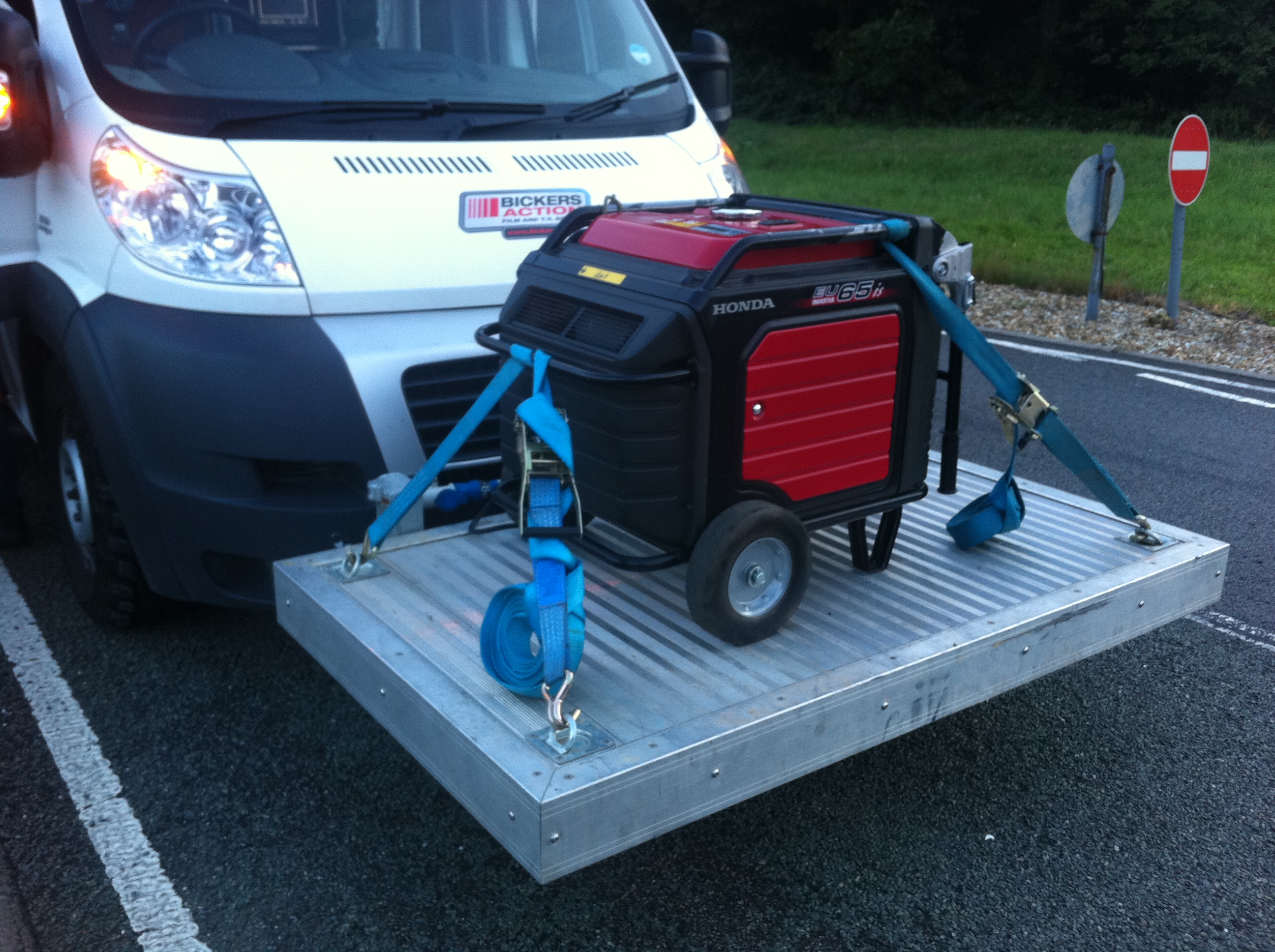

4x Safety harnesses 5K Build in Generator
Interchangeable Front or Rear Platform (2mx1m) “A” Frame or Tow Dolly
  Scaffold Rigging Kit
  Camera Crane Mounting Kit
Dimensions / Weights
Overall Length 7.3 m  (Excluding Rear Platform)
Width 2.1m
Height 2.4m (with Spare wheel on roof)
Working Deck on Rear 5.2 m x 2.1m
Working Deck Height 500mm (Top Deck 800mm)
Front and Rear Platform 2m x 1m
Centre of Crane Column Base to Cab 3m – Can be Varied slightly
Gross Weight of Weight 5500 kg
