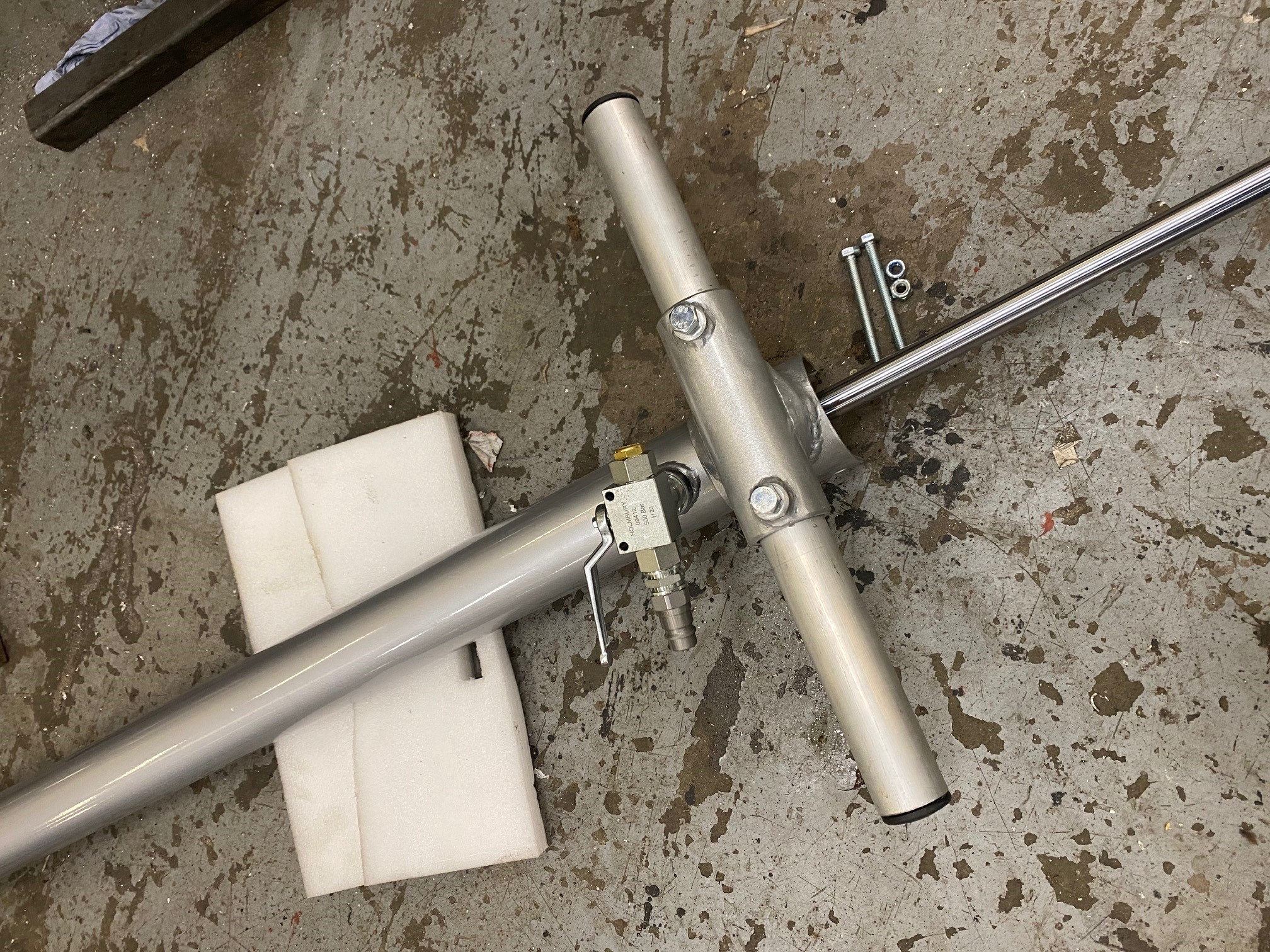

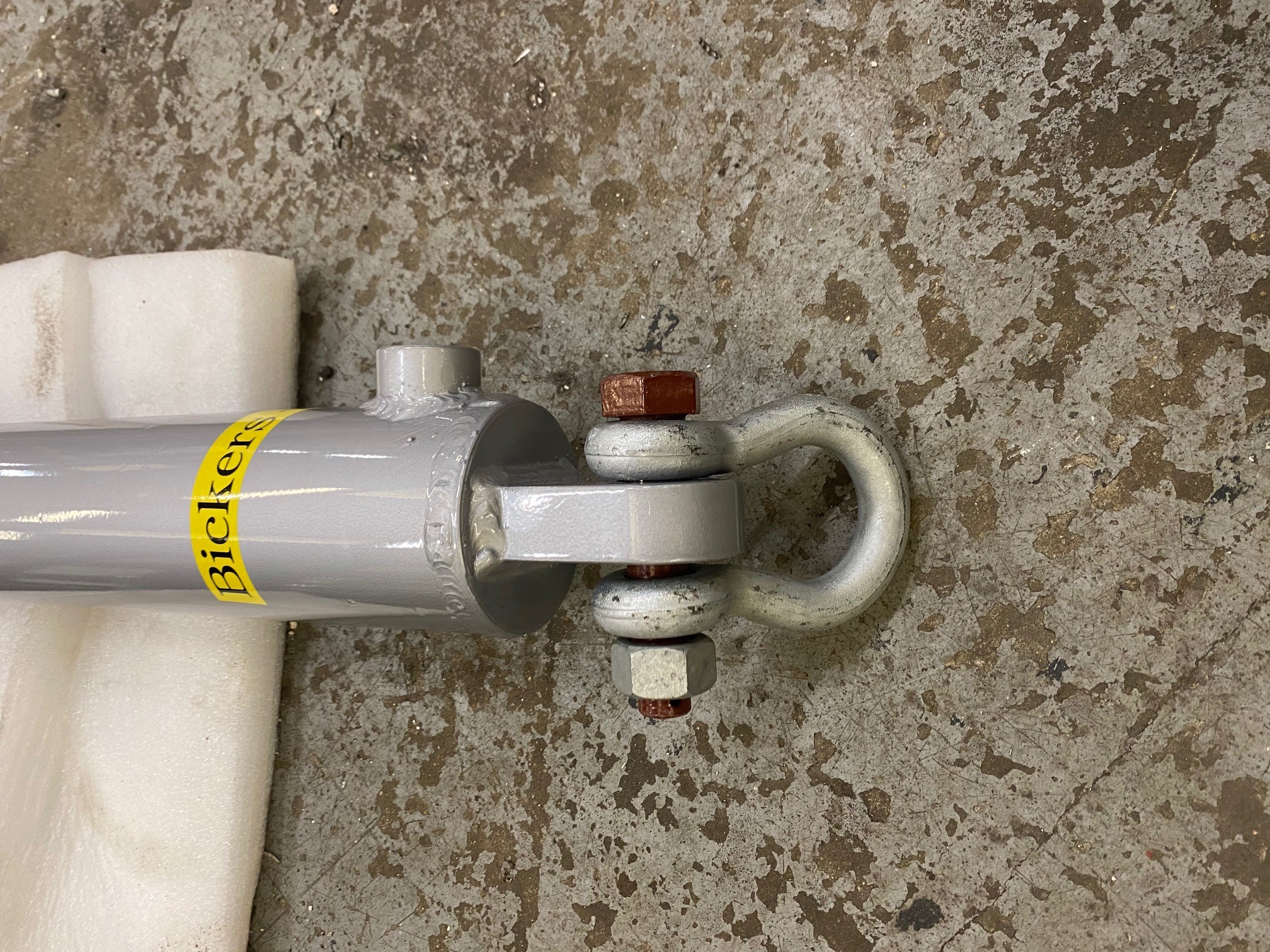

JERK RAMS / SNATCH BACK / RATCHET

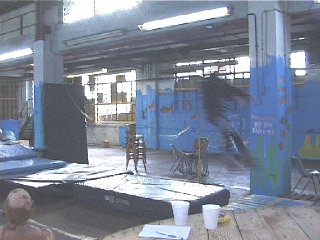

Jerk Ram/Snatch back/ Ratchet  is used for lifting/pulling stunt men through the air after a pyrotechnic explosion. The single acting pneumatic ram offers a smooth and adjustable, yet very powerful method of propulsion – Works well with Our New Mark 6 Firing Box, which can be used for both the Air Ram and Jerk Ram

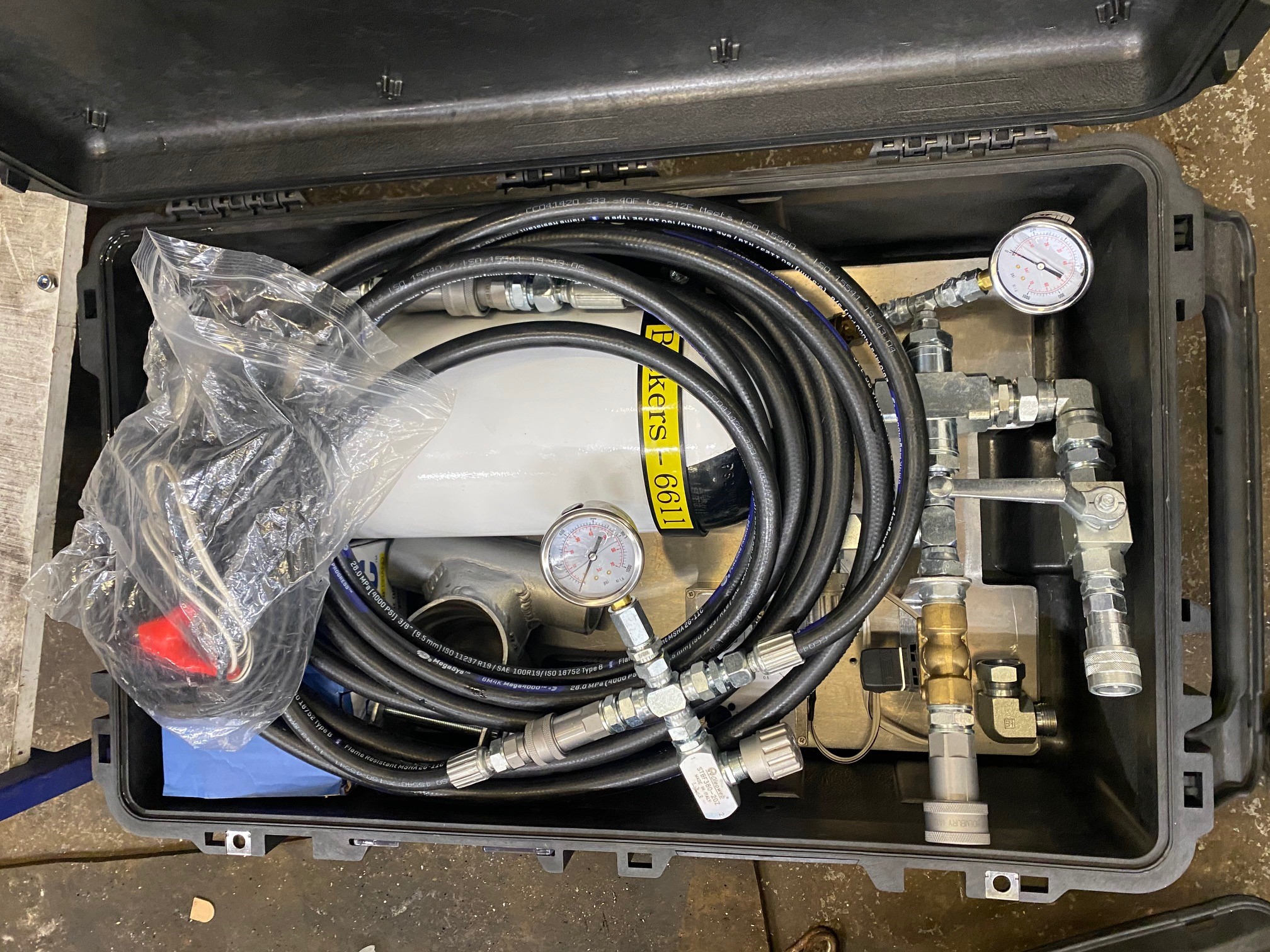

Supplied with firing box and jerk vest. Cable can be supplied to particular requirements.

Available for Sale or Hire

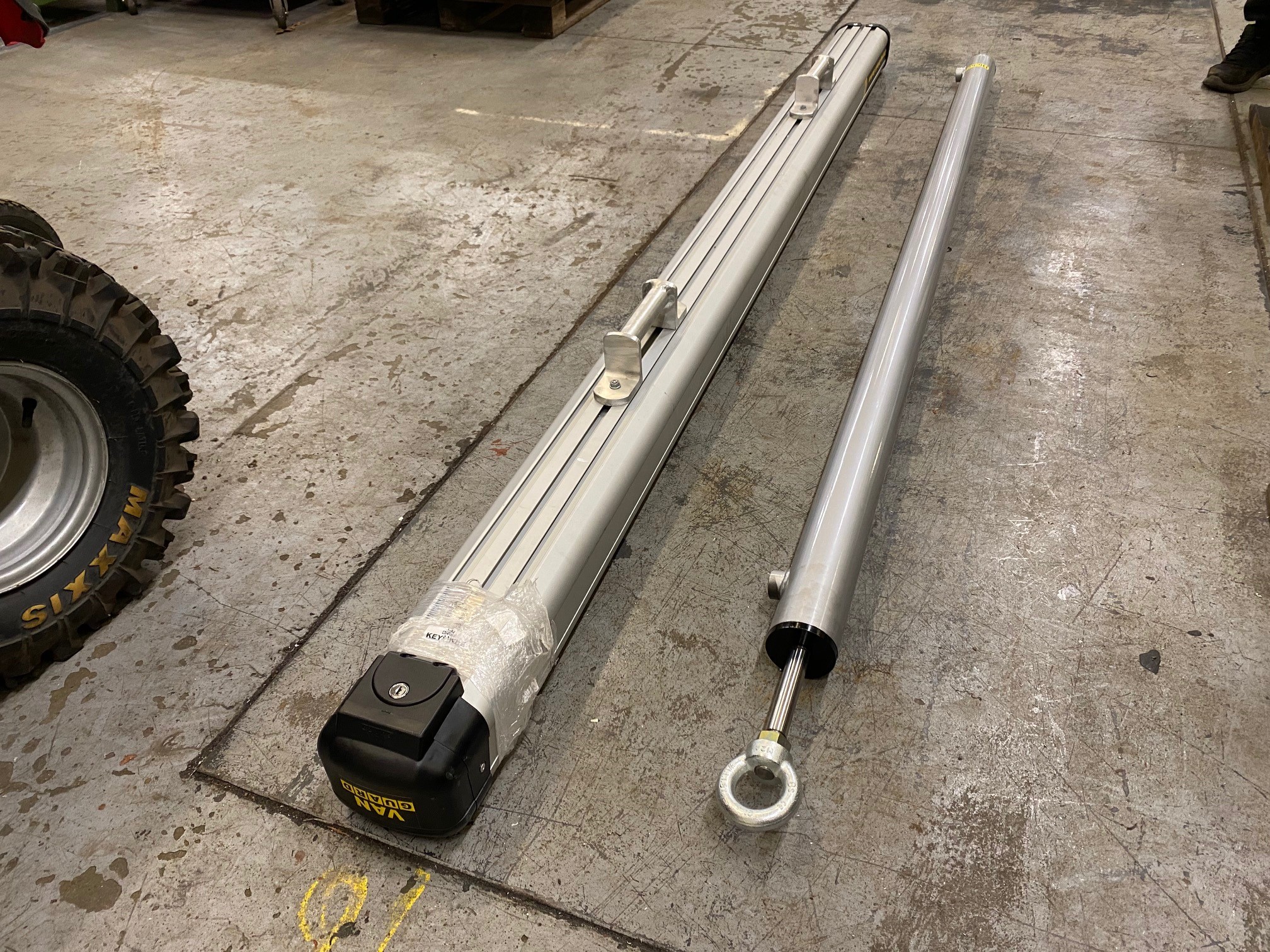

Jerk Ram Specification (Approximate Measurements)

Overall length 2.7m

Overall Width 0.3m

Stroke: 2.4m

Approx. Weight 60 kg

Approx. Weight of firing box 60kg

Operating Pressure 50 psi – 750 psi (50 Bar)

Additional Sizes can be made upon request – As the Ram are Bespoke Made for each order.

Overseas orders – Customs and shipping to be arranged by Customer
