AIR RIDE LOW LOADER NO2
EQUIPMENT AND DIMENSIONS

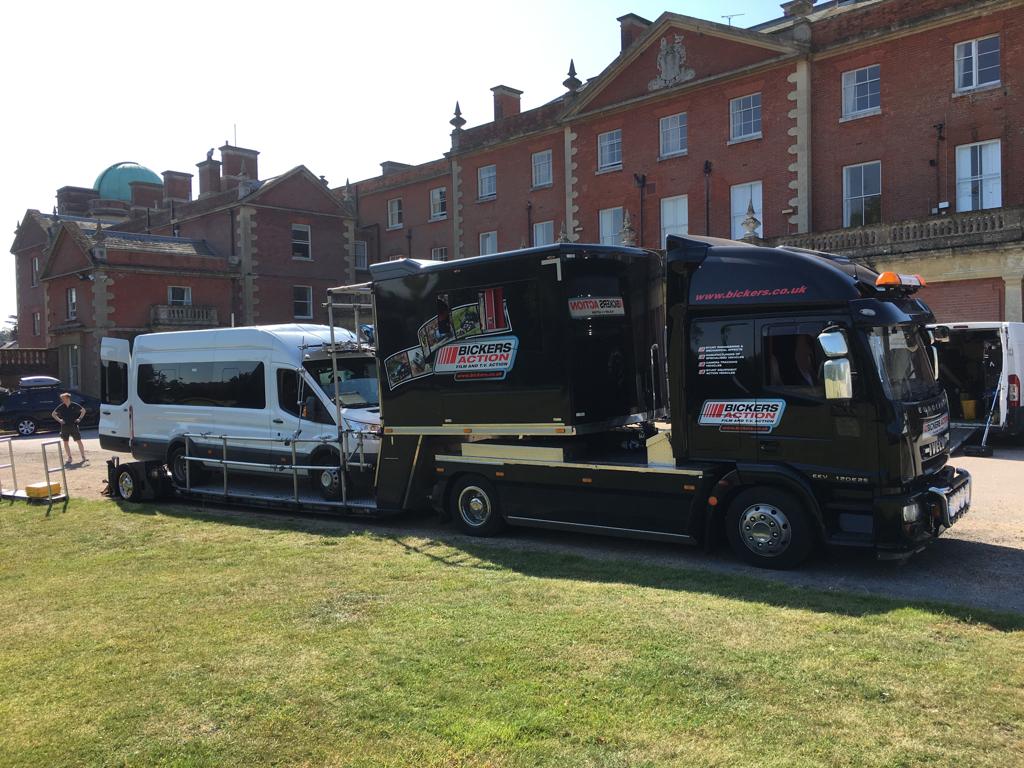

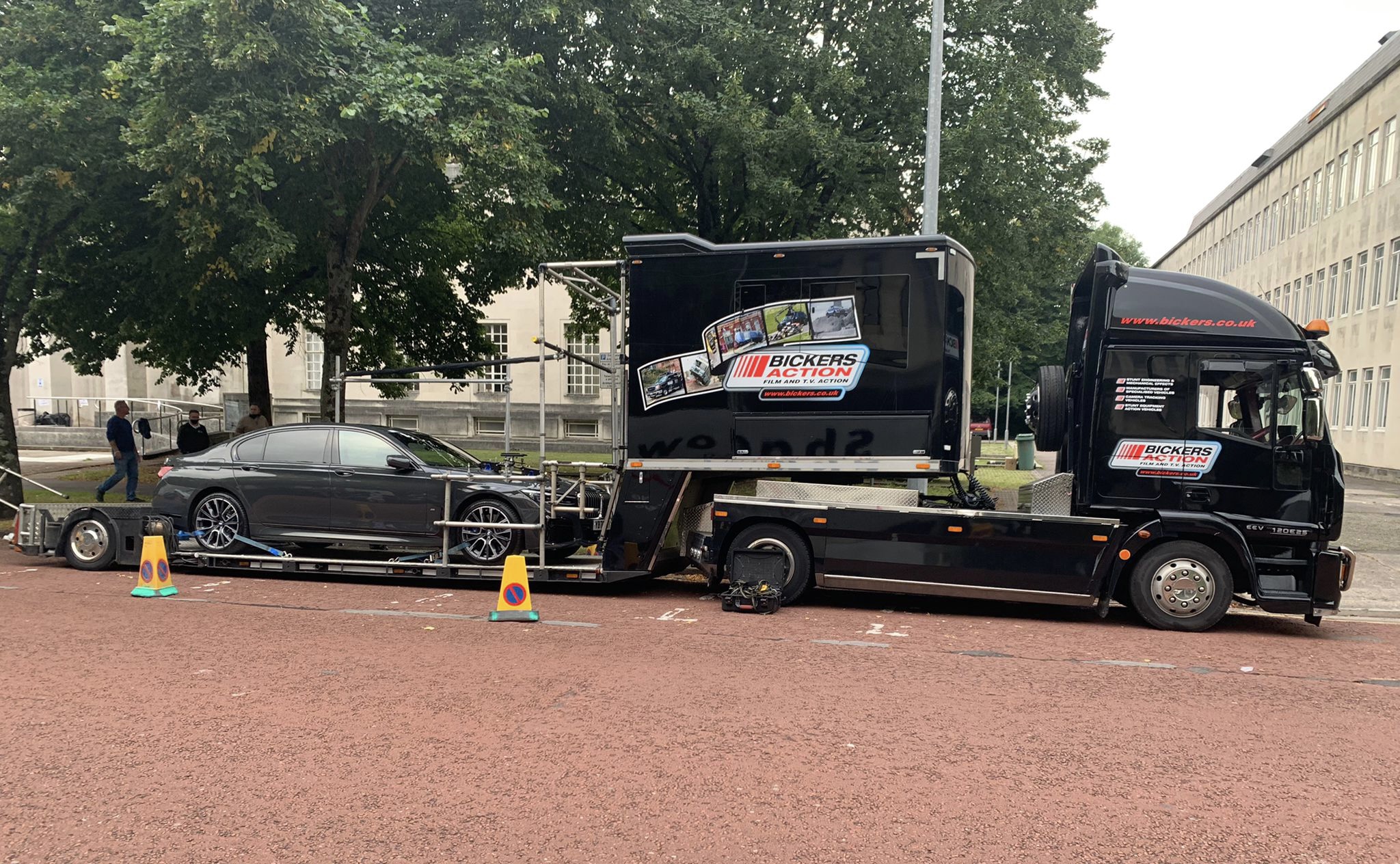

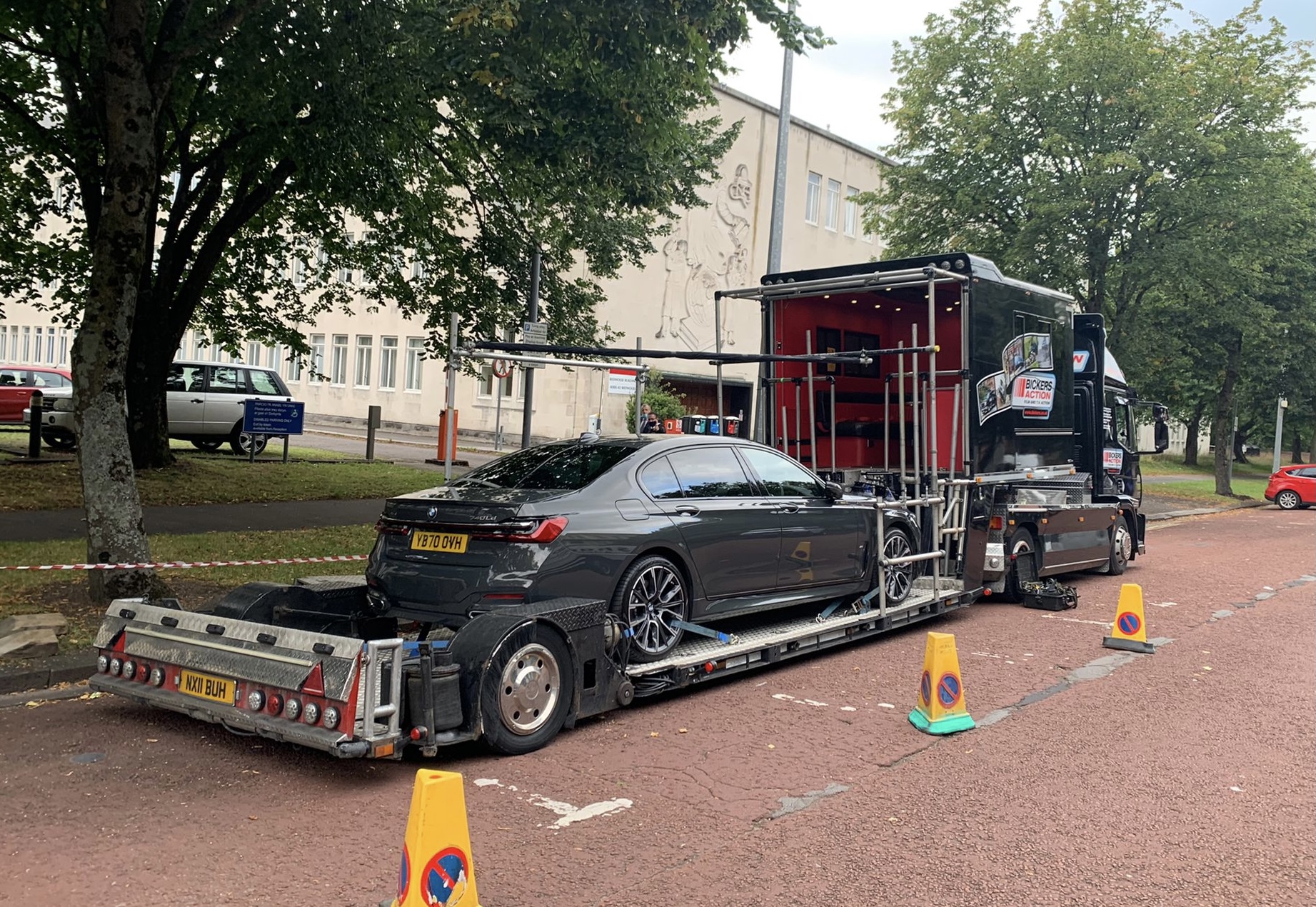

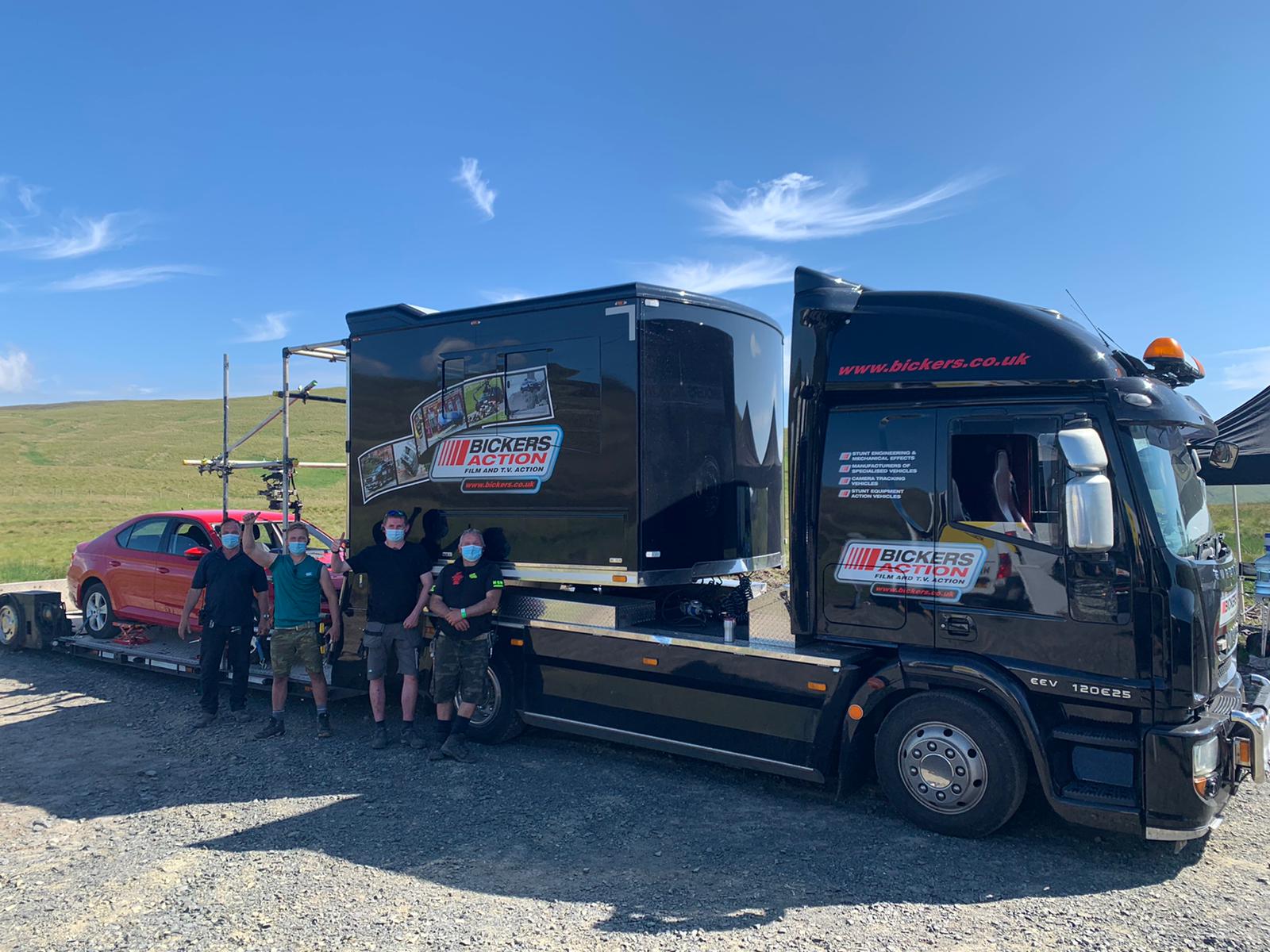

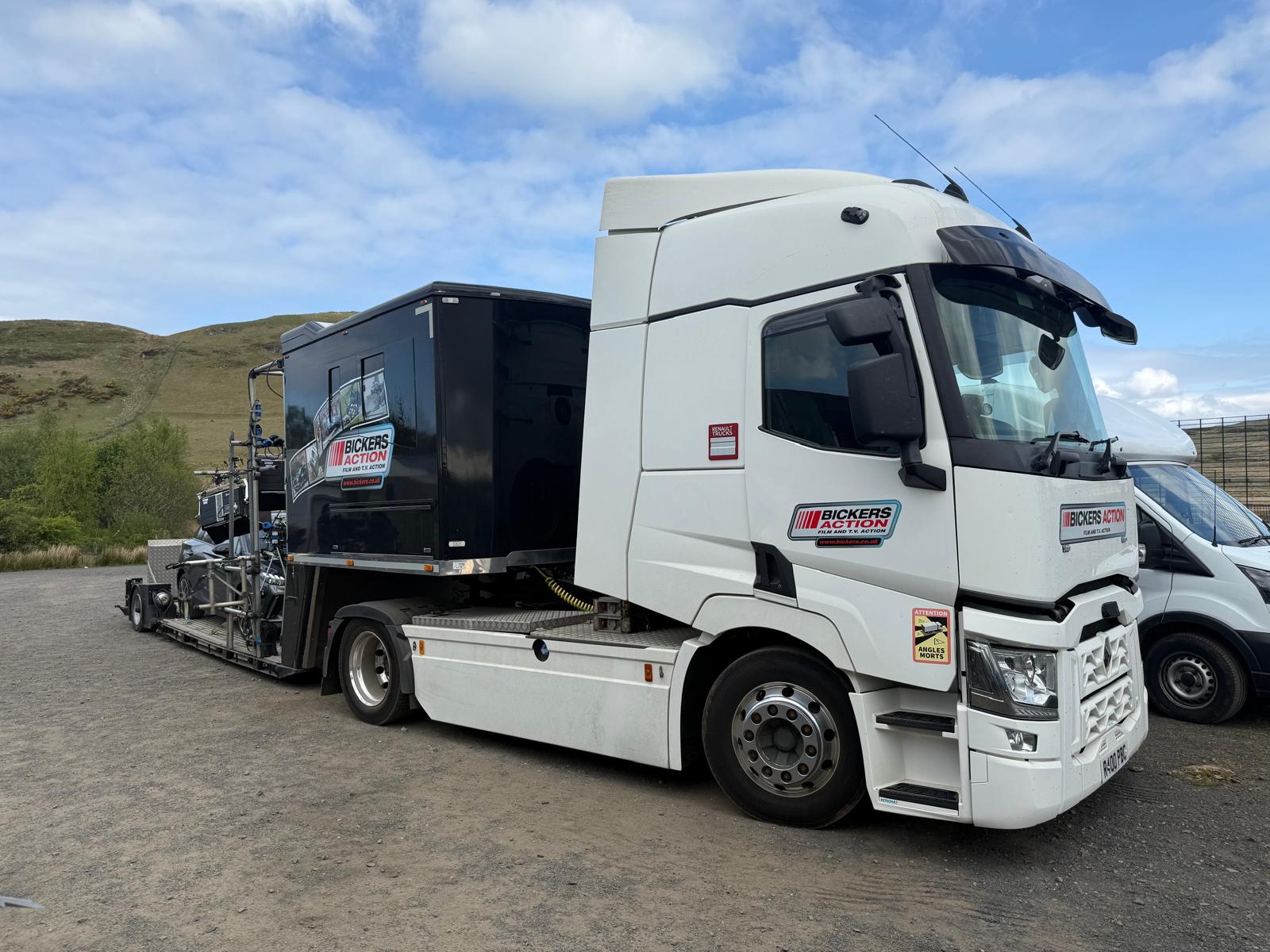

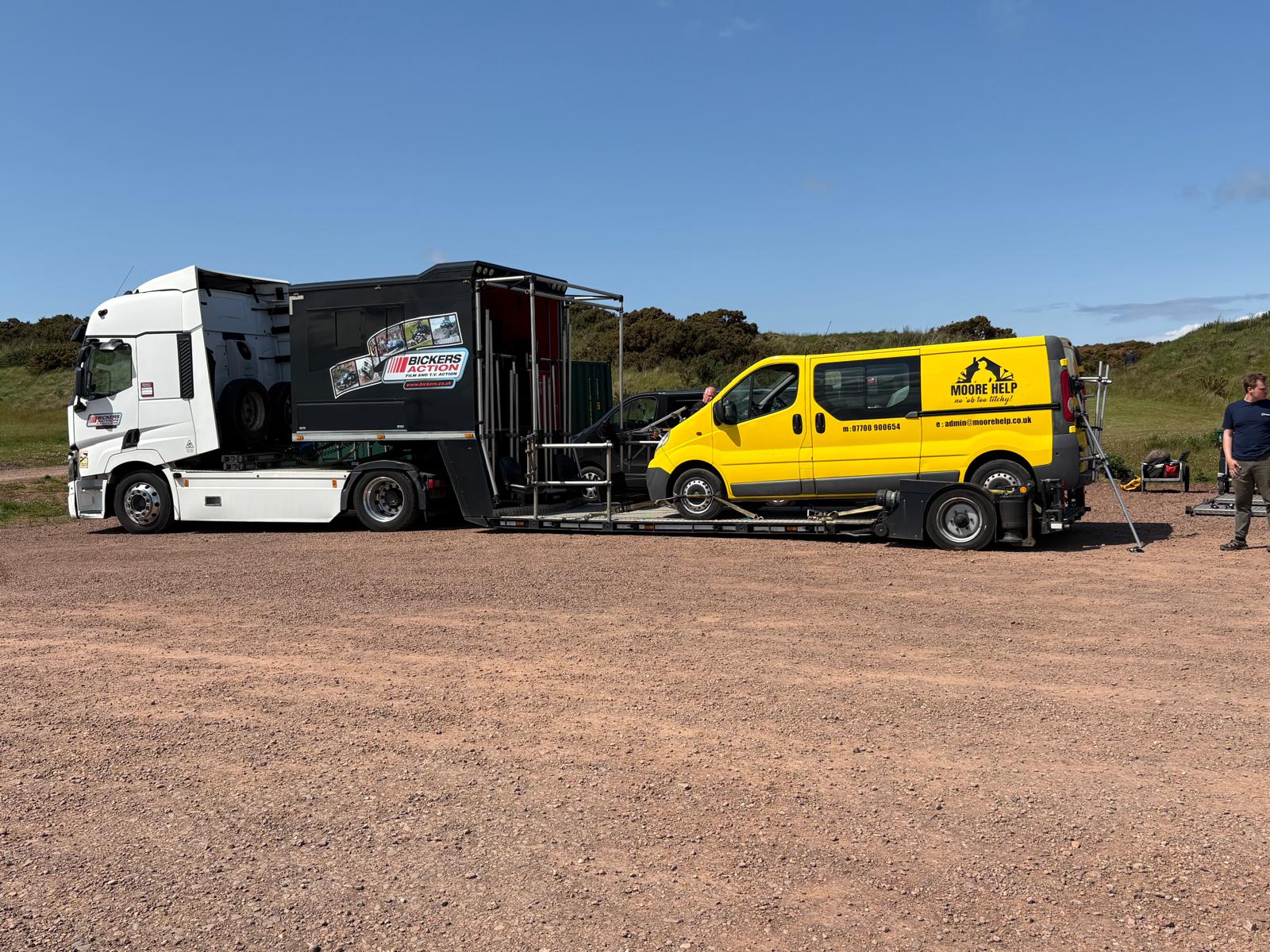

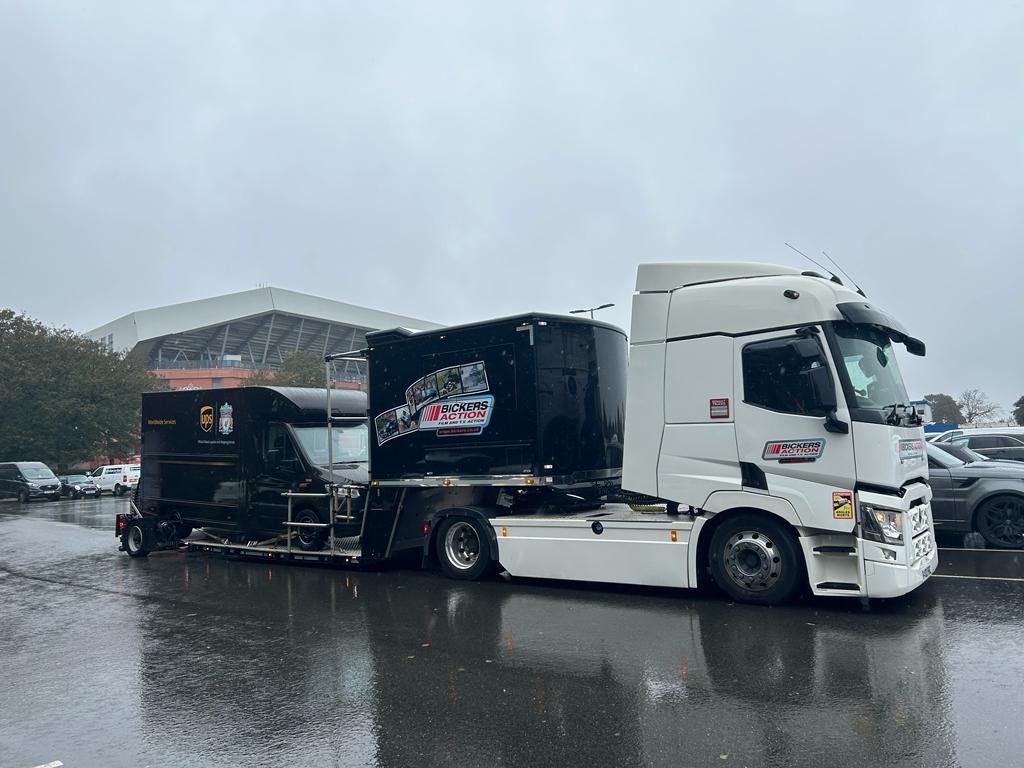

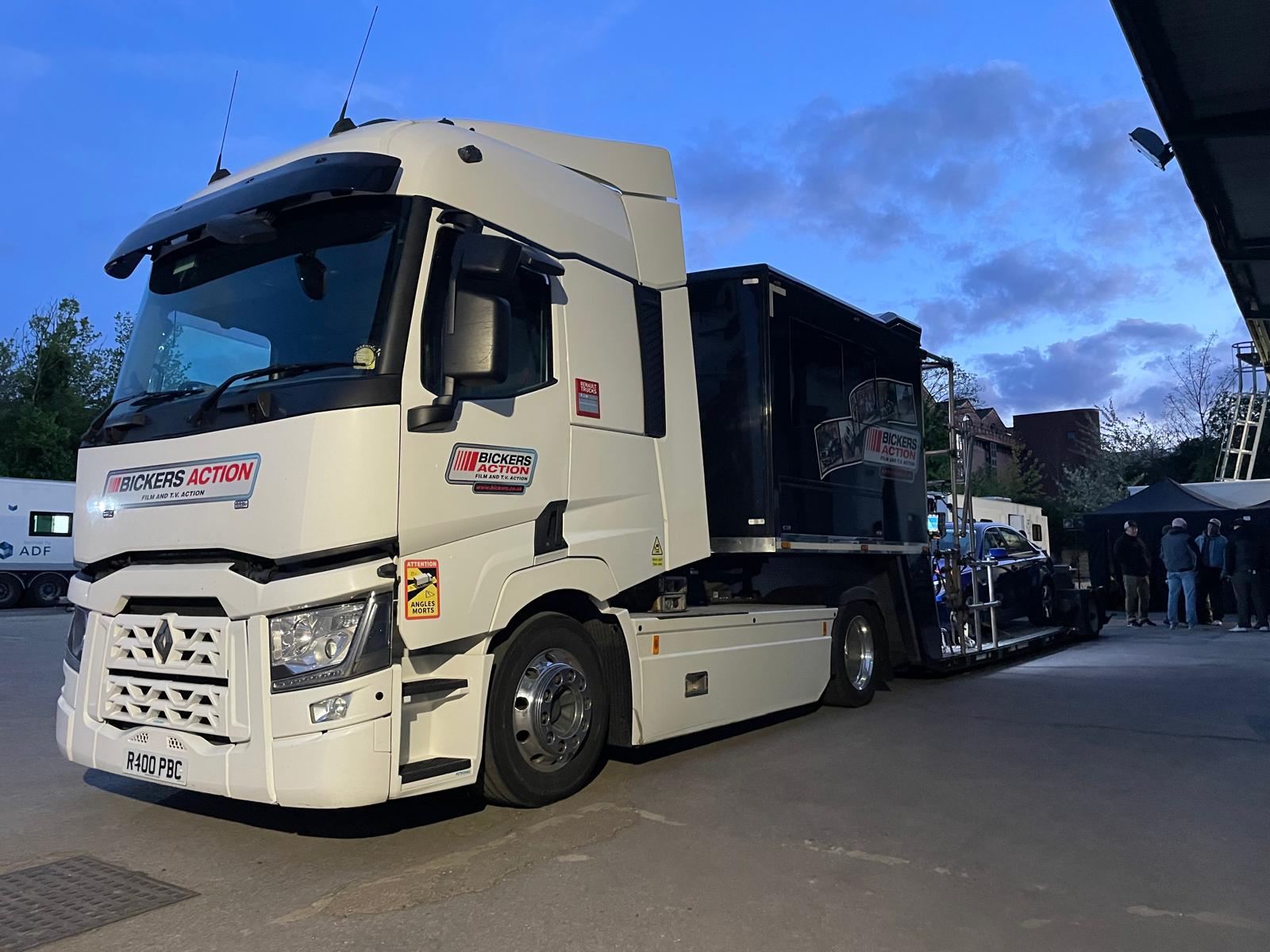

Low Loader No2 Tracking Trailer can carry most vehicles – we can even carry Light aircraft!
For vehicles that are too wide to load with trailer wheels in their normal position, the wheels can be hydraulically powered outwards to allow for increased loading width. Crew Carrying capacity is 9 Crew plus Artists in the Action Vehicle on the Low Loader Trailer. It has 350mm Wide extension side platforms complete with Handrails
It has a large enclosed Crew Compartment with windows, with seating for up to 9 Crew Members – each seating position fitted with a lap safety harness and cushioned seating. Power supply for ancillary equipment and lighting are also fitted in this compartment together with a removable monitor table.
The Independent Suspension is 100% air cushion and can be adjusted according to weight and ride comfort. The trailer is fitted with much larger diameter airbags, which allows the trailer to ride much smoother when greater loads are being carried.
Driven by one of our Precision Tracking Vehicle Drivers – HGV 1 Licence is required to drive this vehicle.
|Standard Equipment||Optional Equipment|
|Safety Harnesses||Scaffold Tube and Fittings Rig|

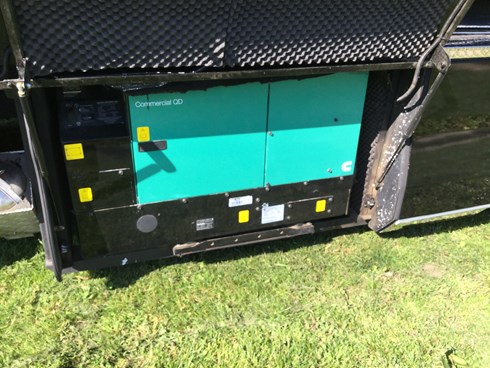

|Lap belts in Crew Compartment||8K Generator|
|Dimensions / Weights|
|Overall Length of Towing Vehicle and Trailer||13.8 m|
|Width of Low Loader||2.55m|
|Max Width with platform fully out on one side||3.0 m (350 mm platform wide – One side at a time only)|
|Height of Low Loader||3.7m|
|Working Deck of Low Loader||7 m x 2.55m|
|Gross Train Weight of Tow Vehicle and Trailer||26000kg|
