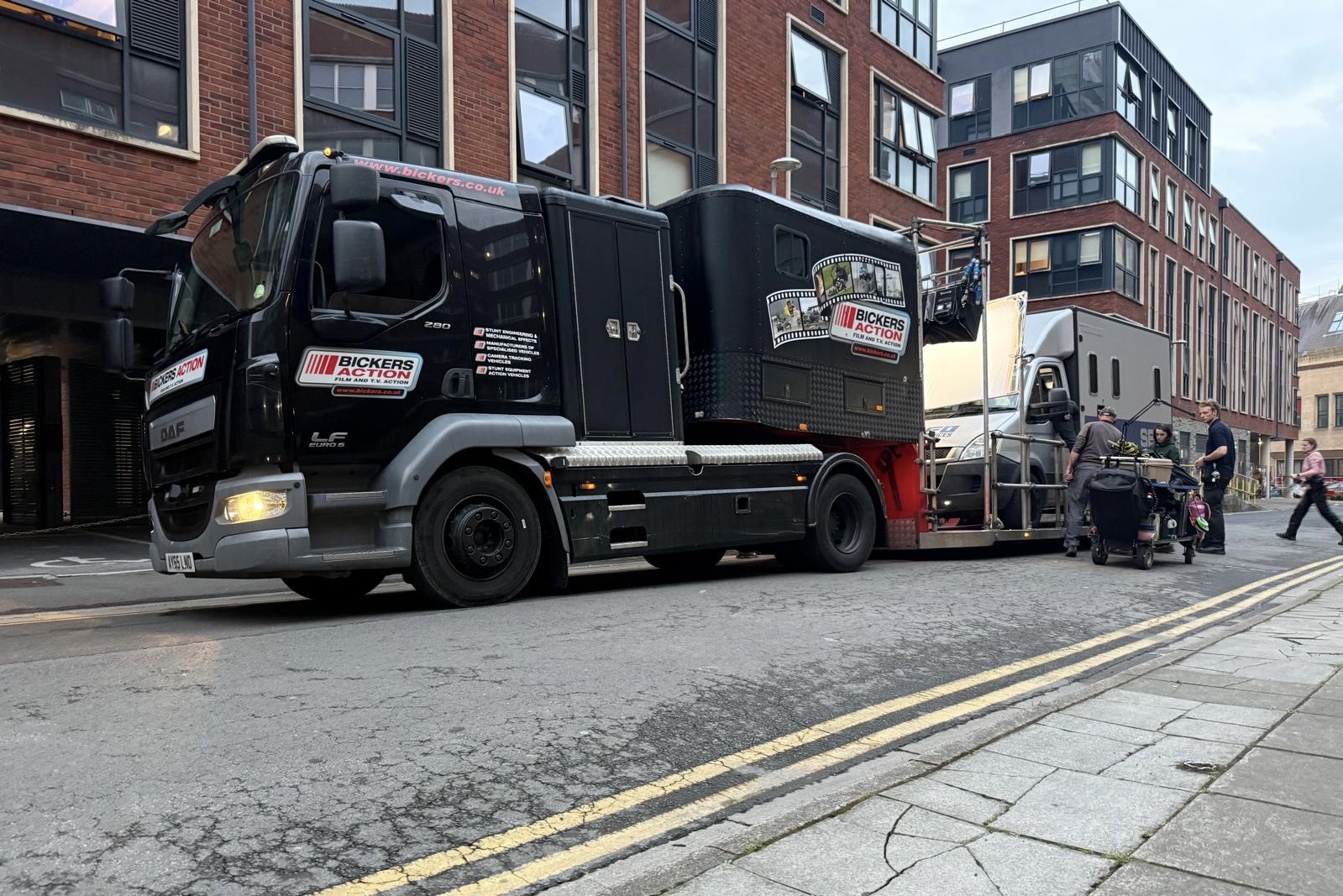

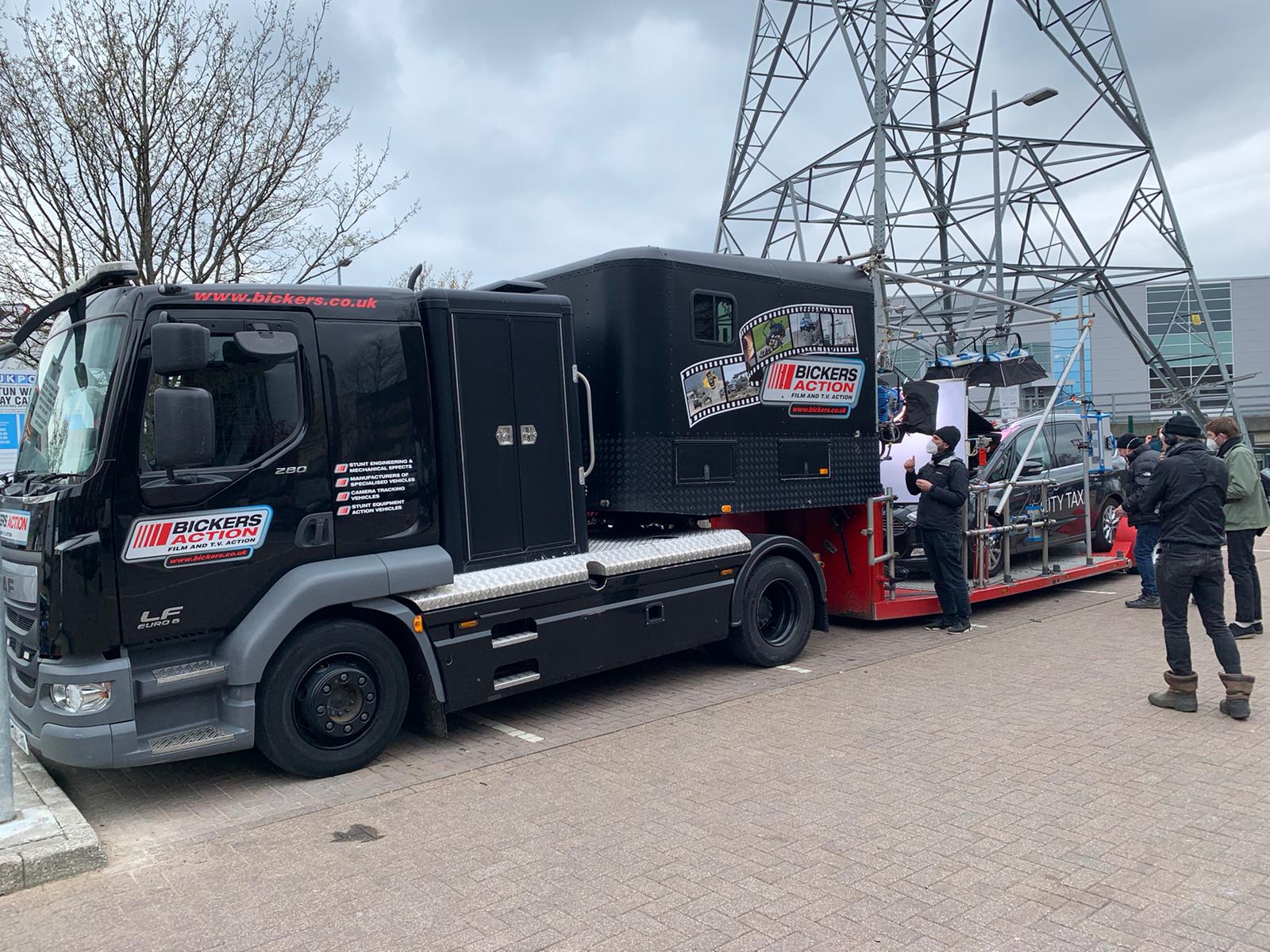

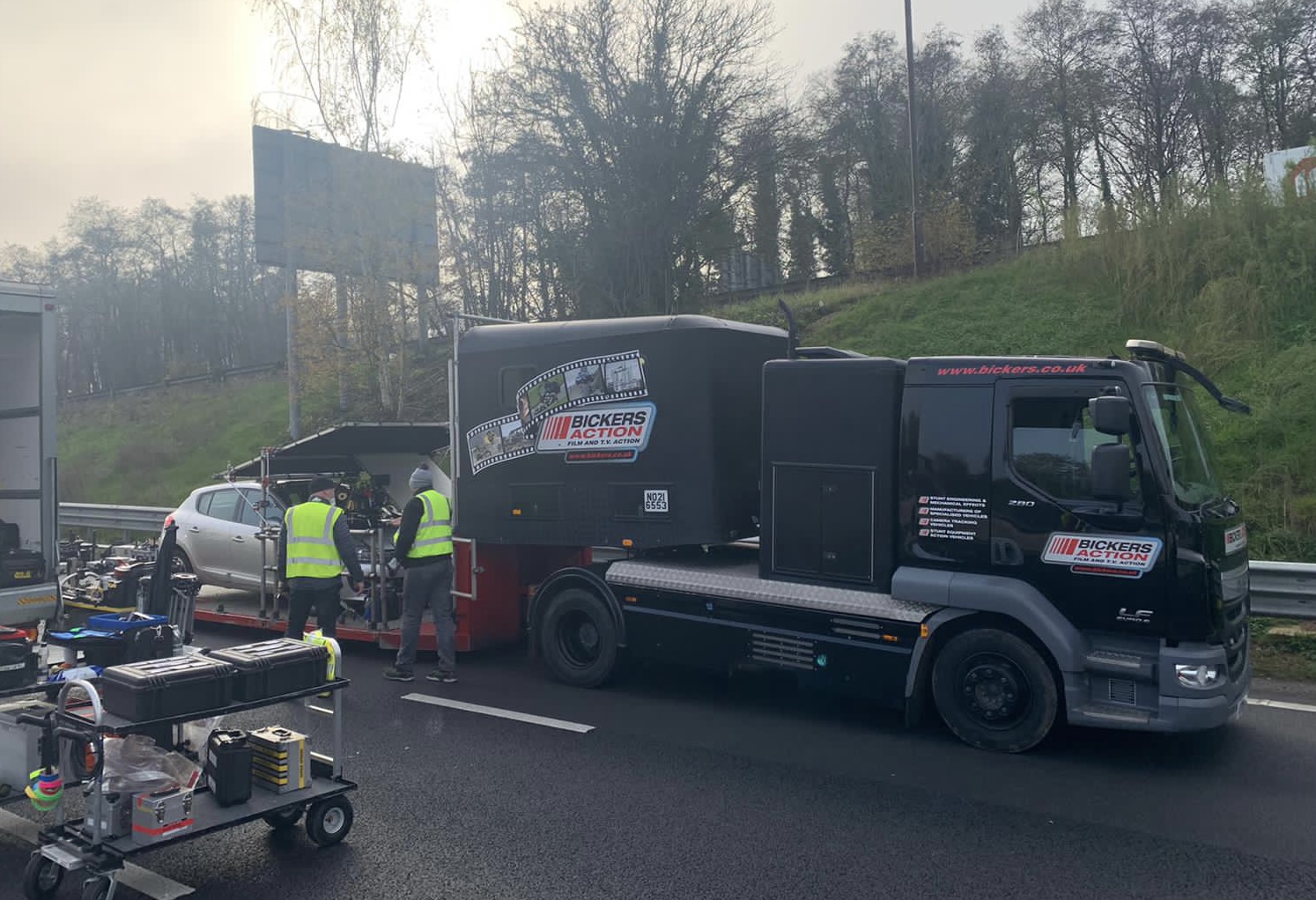

AIR RIDE LOW LOADER TRACKING TRAILER NO 1 – NOW 2X AVAILABLE

EQUIPMENT AND DIMENSIONS

PDF

New Addition to Bickers Fleet – http://www.lowlife-lowloaders.com/

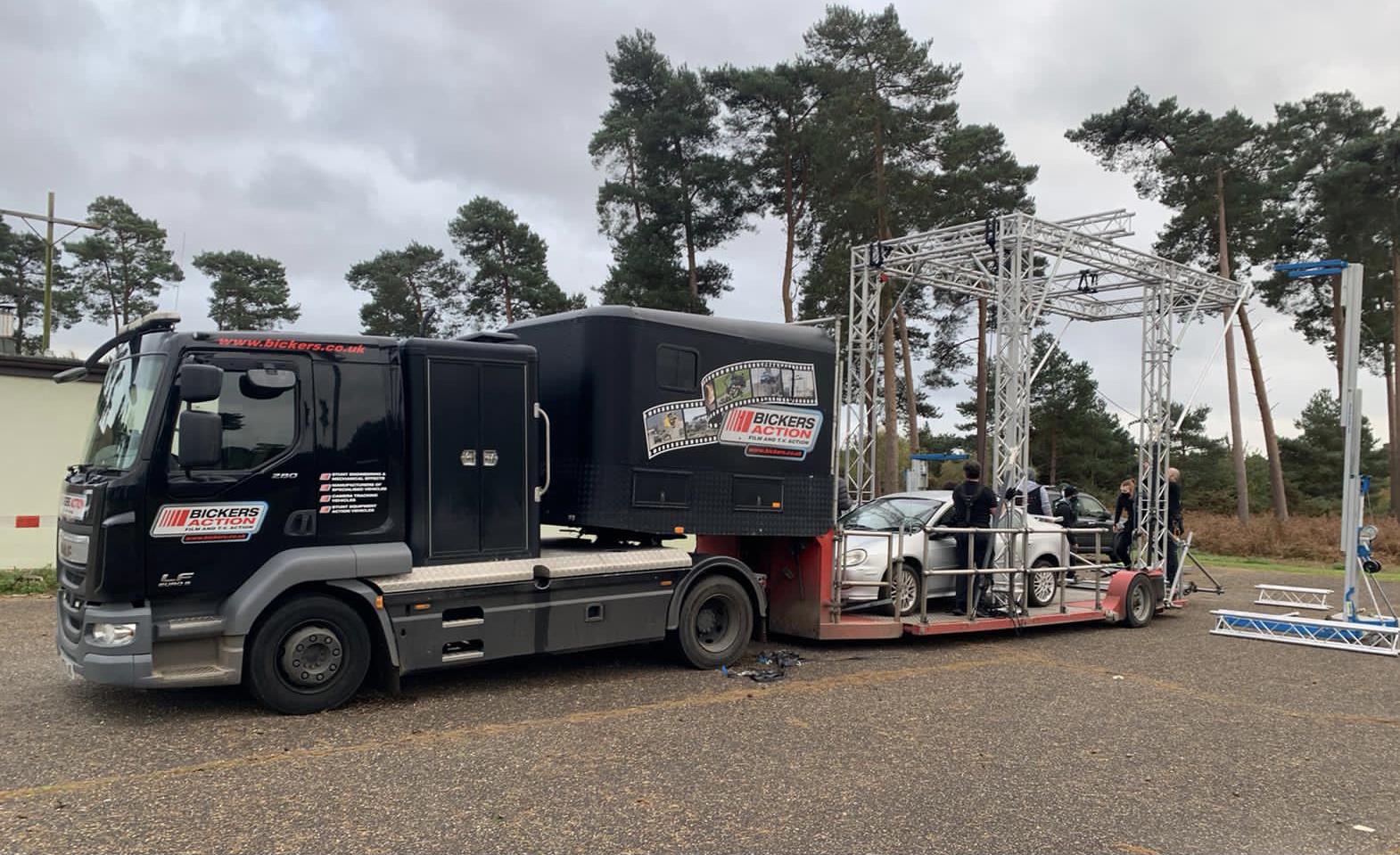

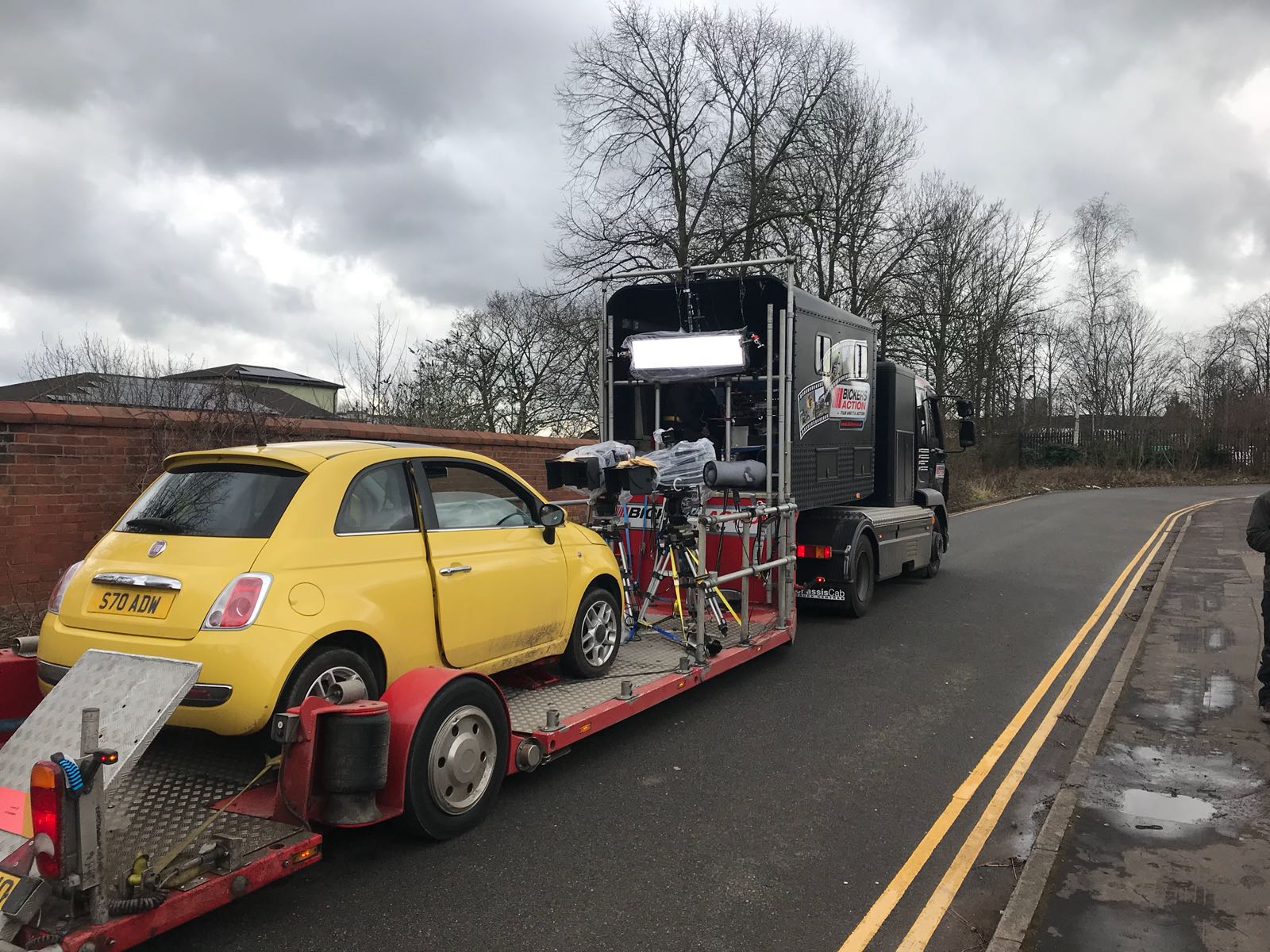

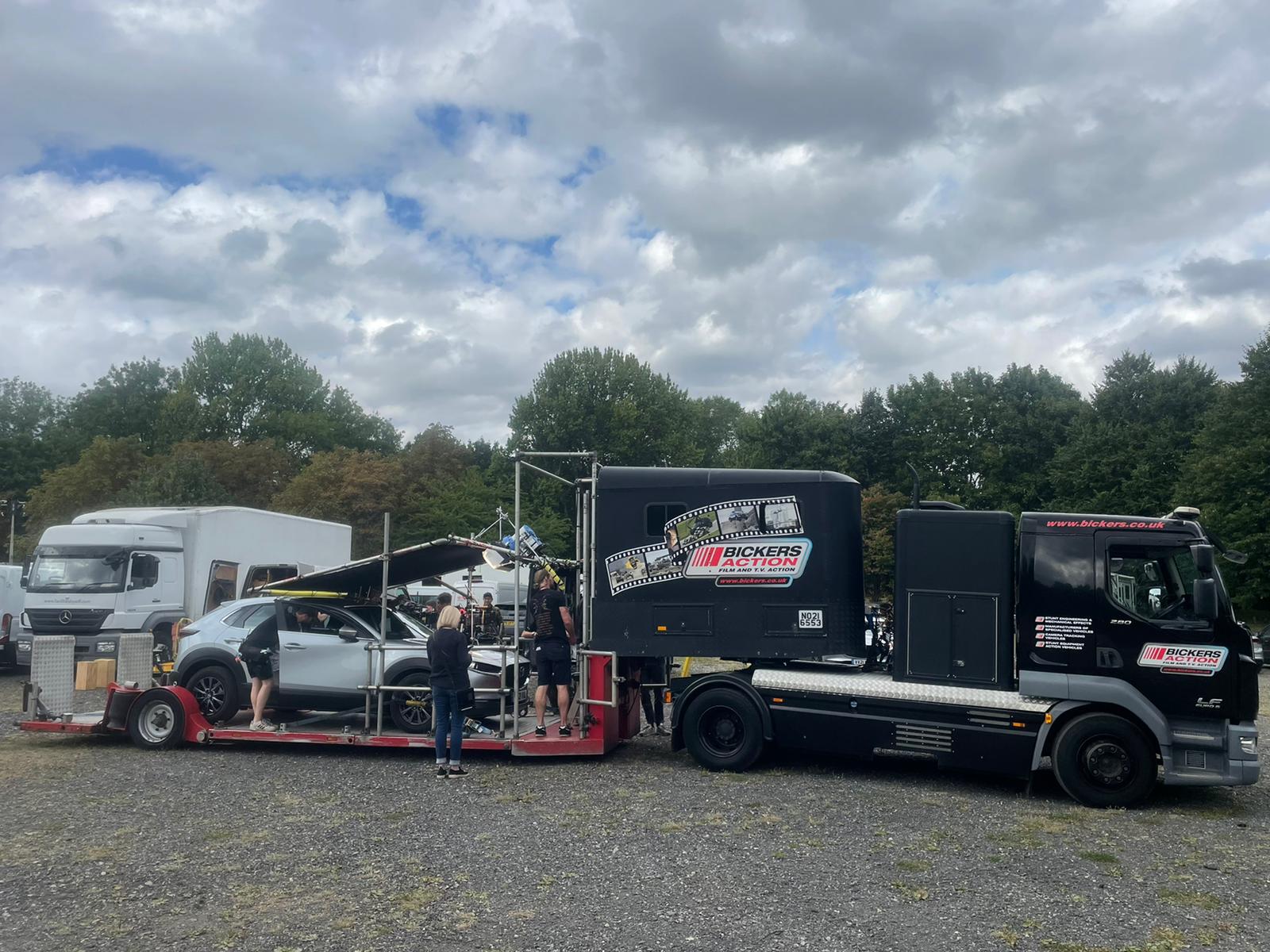

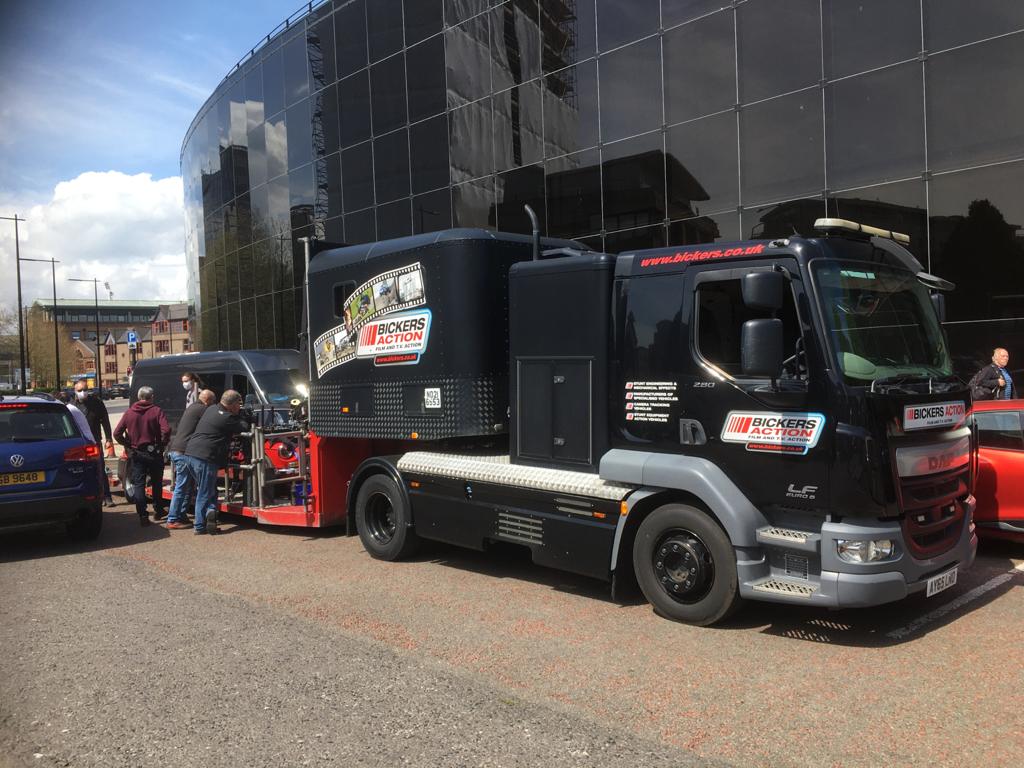

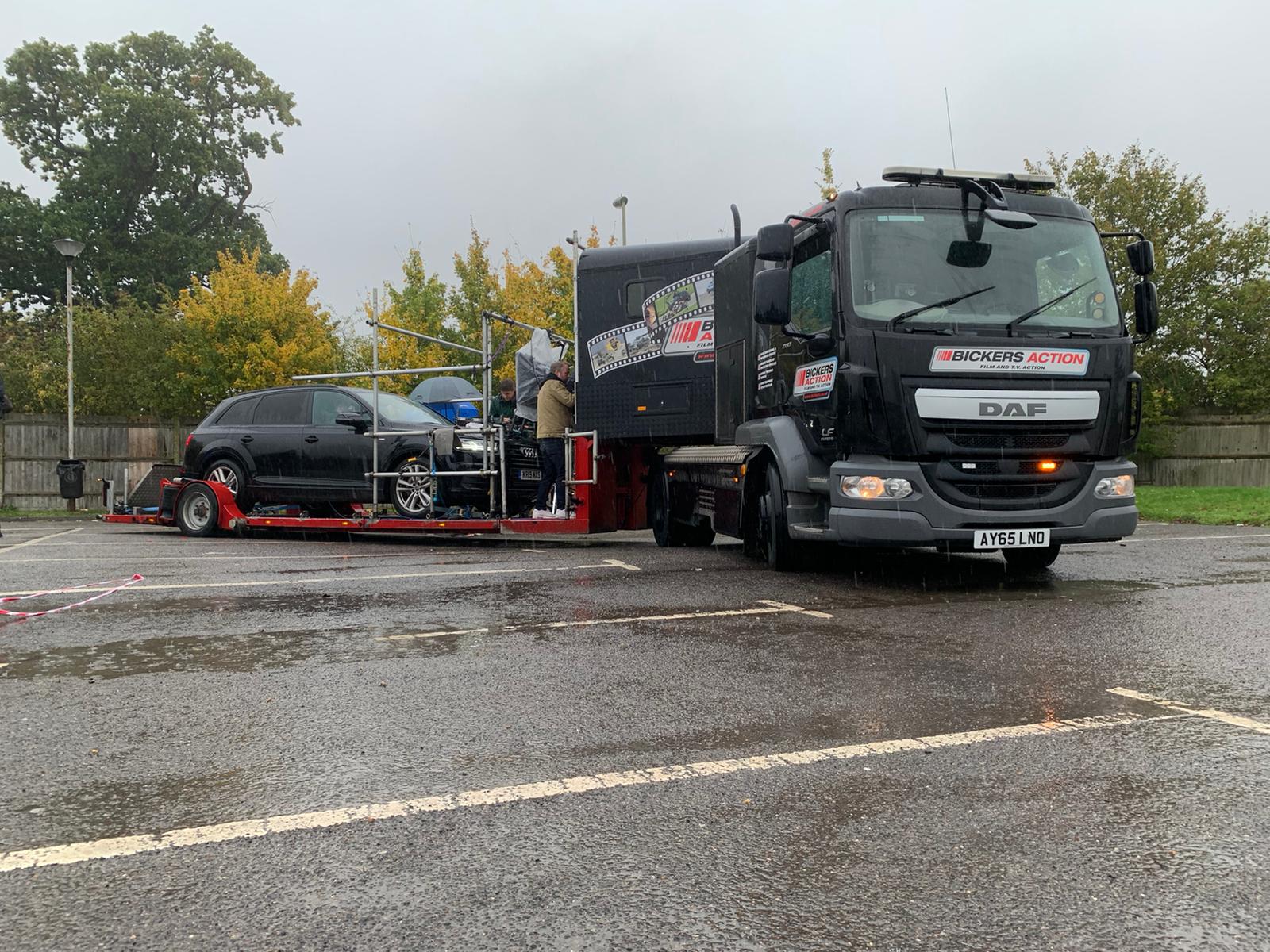

Low Loader No1 Tracking Trailer can carry most vehicles – we can even carry Light aircraft!

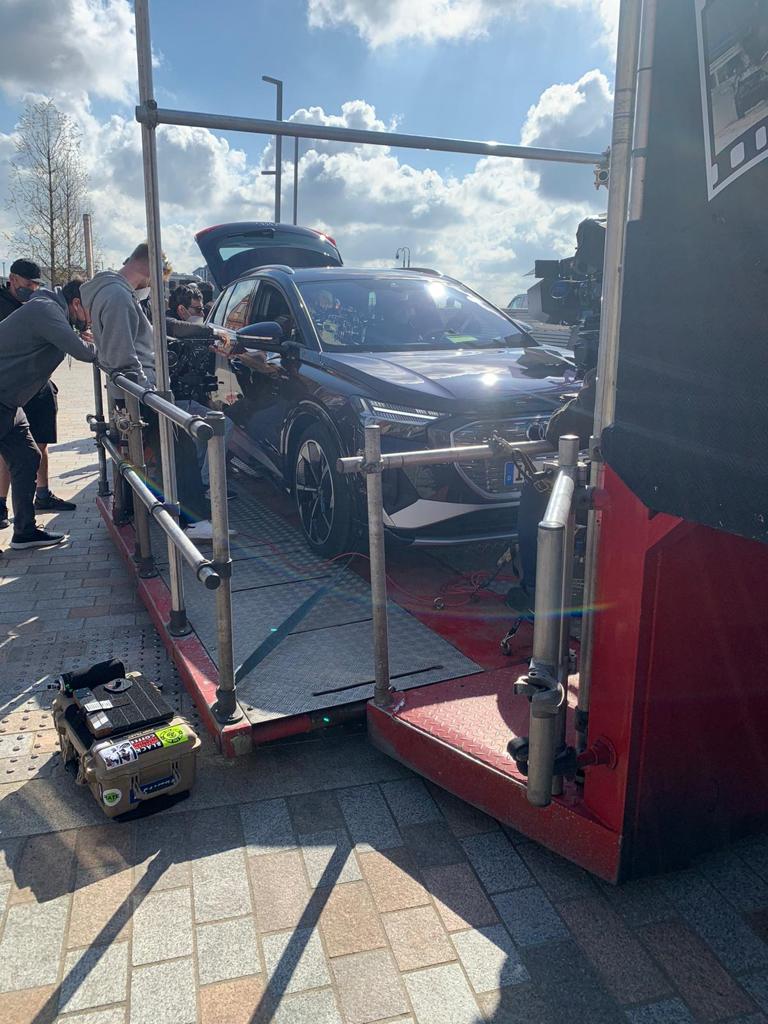

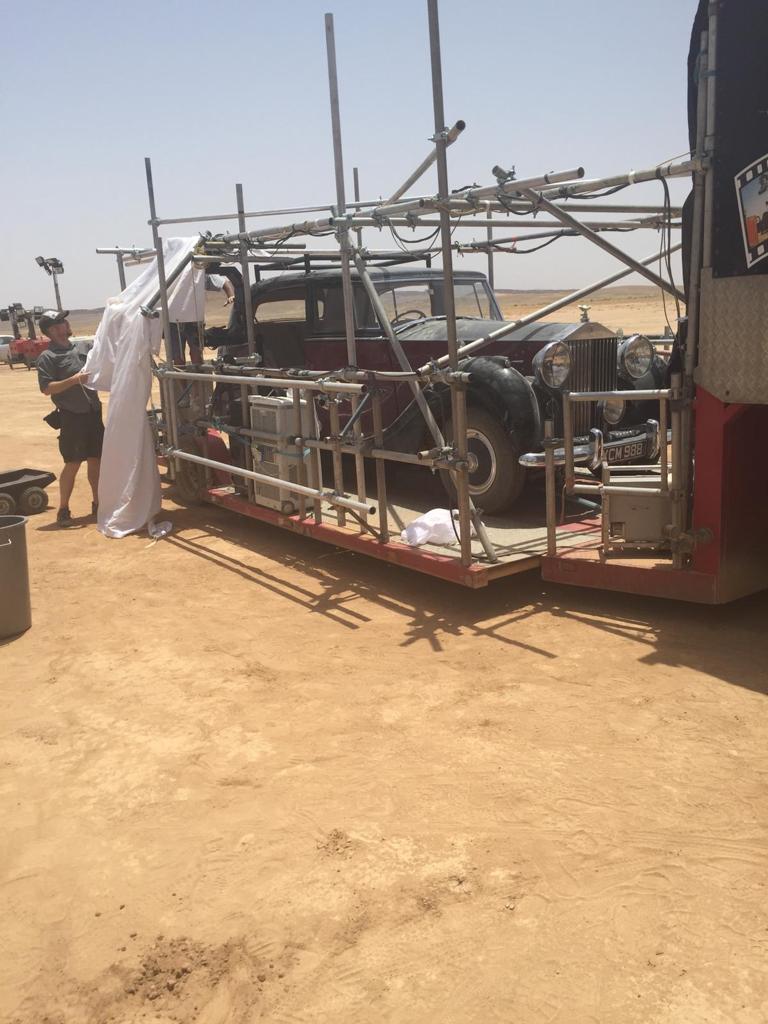

For vehicles that are too wide to load with trailer wheels in their normal position, the wheels can be hydraulically powered outwards to allow for increased loading width. Crew Carrying capacity is 9 Crew plus Artists in the Action Vehicle on the Low Loader Trailer. It has 4 hydraulically extending side Extension platforms complete with Handrails

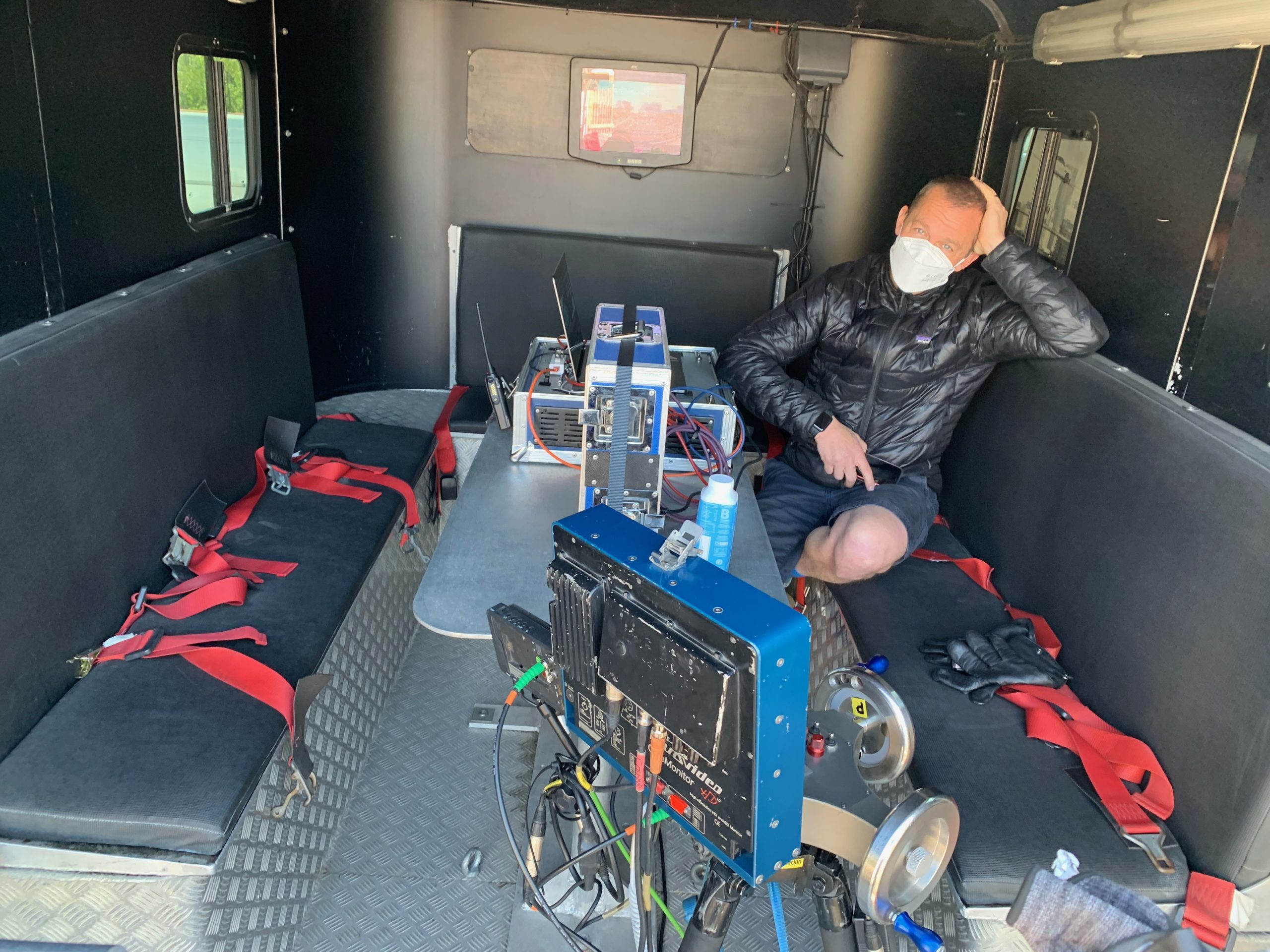

It has a large enclosed Crew Compartment with windows, with seating for up to 9 Crew Members – each seating position fitted with a lap safety harness and cushioned seating. Power supply for ancillary equipment and lighting are also fitted in this compartment together with a removable monitor table.

The Independent Suspension is 100% air cushion and can be adjusted according to weight and ride comfort. The trailer is fitted with much larger diameter airbags, which allows the trailer to ride much smoother when greater loads are being carried.

Driven by one of our Precision Tracking Vehicle Drivers – HGV 1 Licence is required to drive this vehicle



Standard Equipment Optional Equipment
Safety Harnesses Scaffold Tube and Fittings Rig
Lap belts in Crew Compartment 8K Generator
Dimensions / Weights
Overall Length of Towing Vehicle and Trailer 13m
Width of Low Loader 2.55m
Max Width with platform fully out on one side 3.2m (600mm platform travel – on either side of trailer)
Height of Low Loader 3.5m
Working Deck of Low Loader 6.8m x 2.55m
Gross Train Weight of Tow Vehicle and Trailer 18000kg
