TROJAN 3 ELITE COMPACT ELECTRIC – ETV -SIDE BY SIDE 60 VOLT POWERED

EQUIPMENT AND DIMENSIONS

PDF

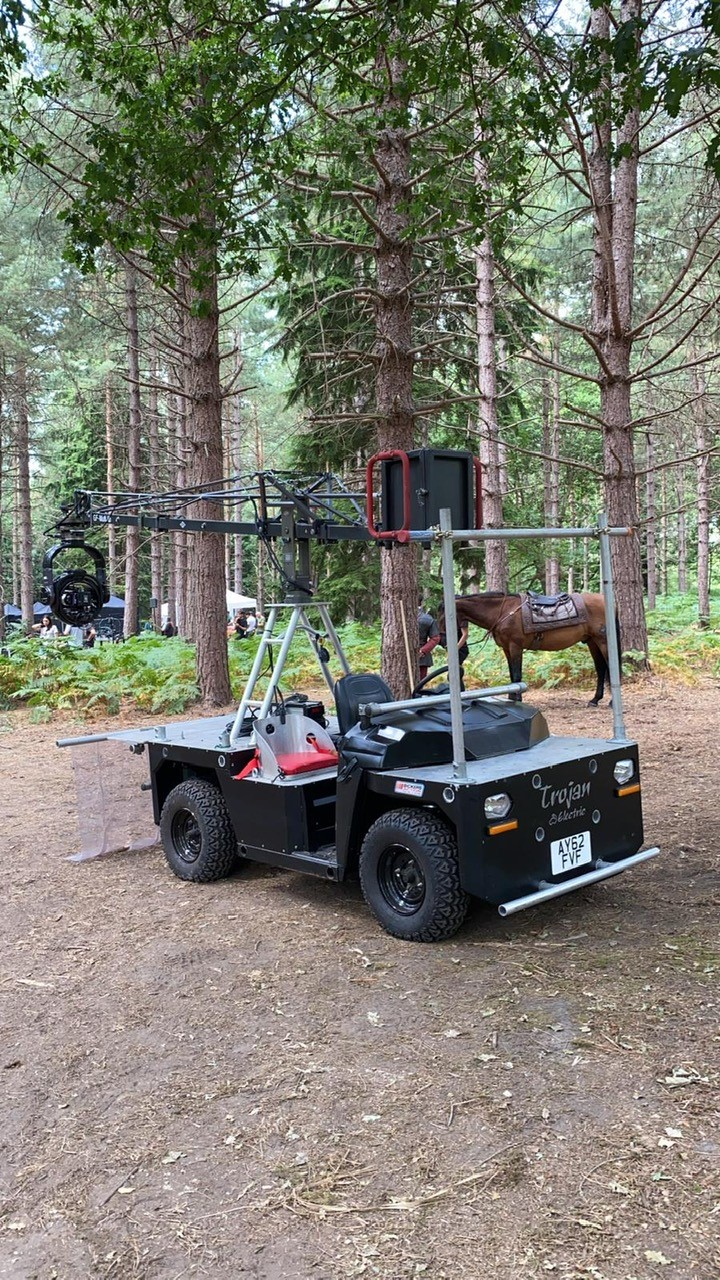

The “Trojan 3 ” Side by Side is our Compact Electric Powered tracking vehicle / Powered Dolly.

Bickers Upgrade from Standard 48V to 65V – Lithium Ion Batteries for Increased Speed and Prolonged Battery Life

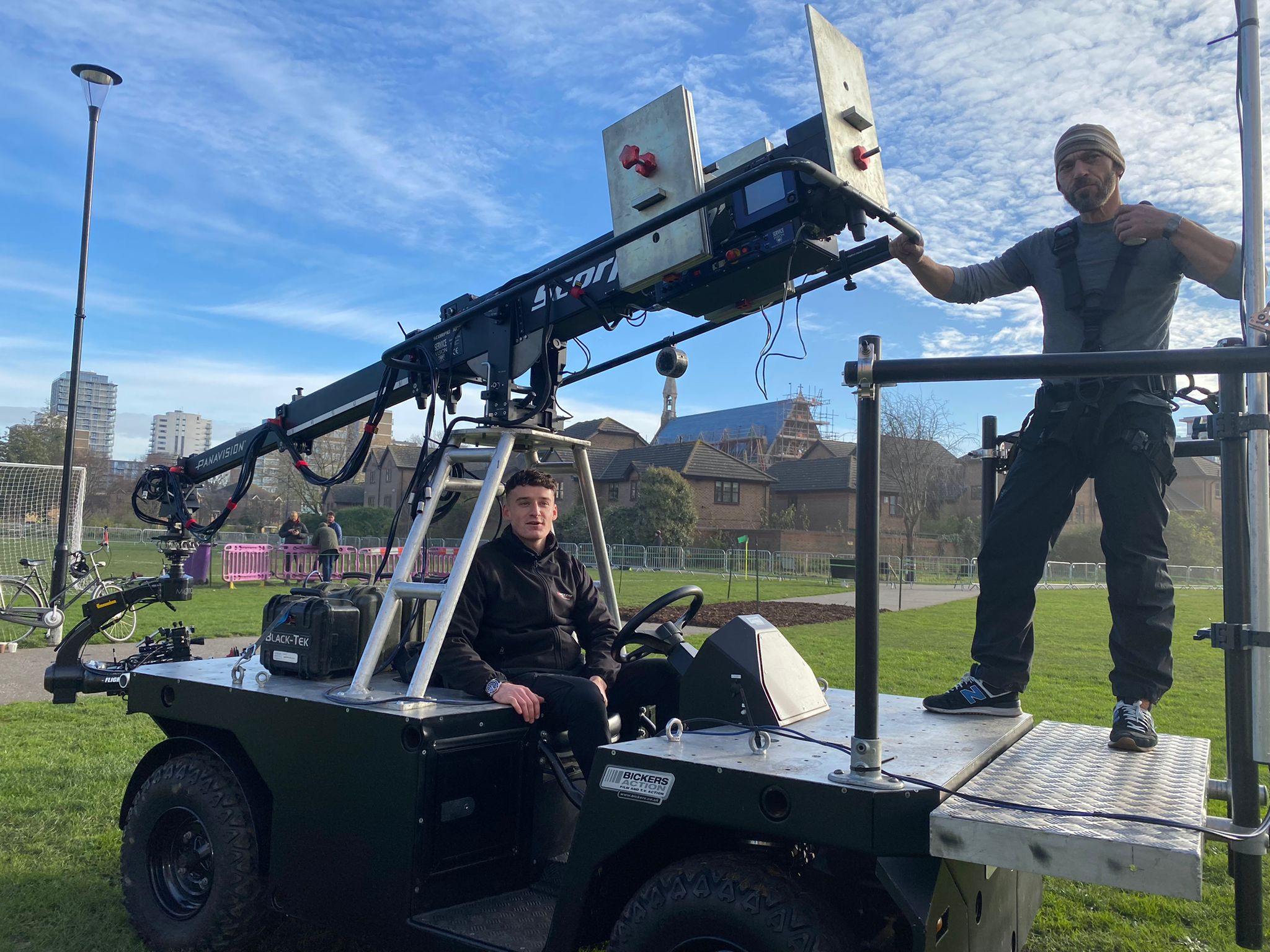

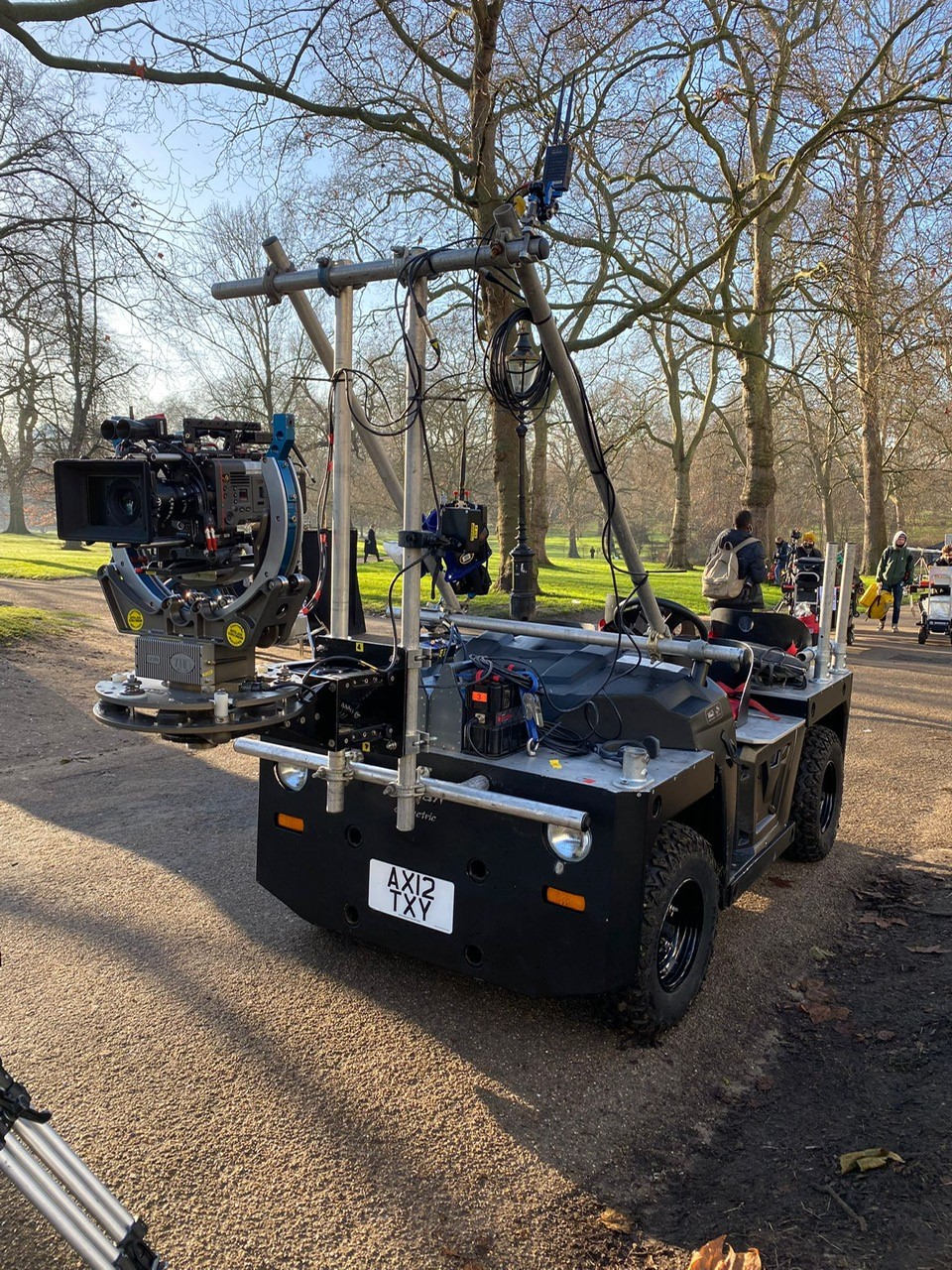

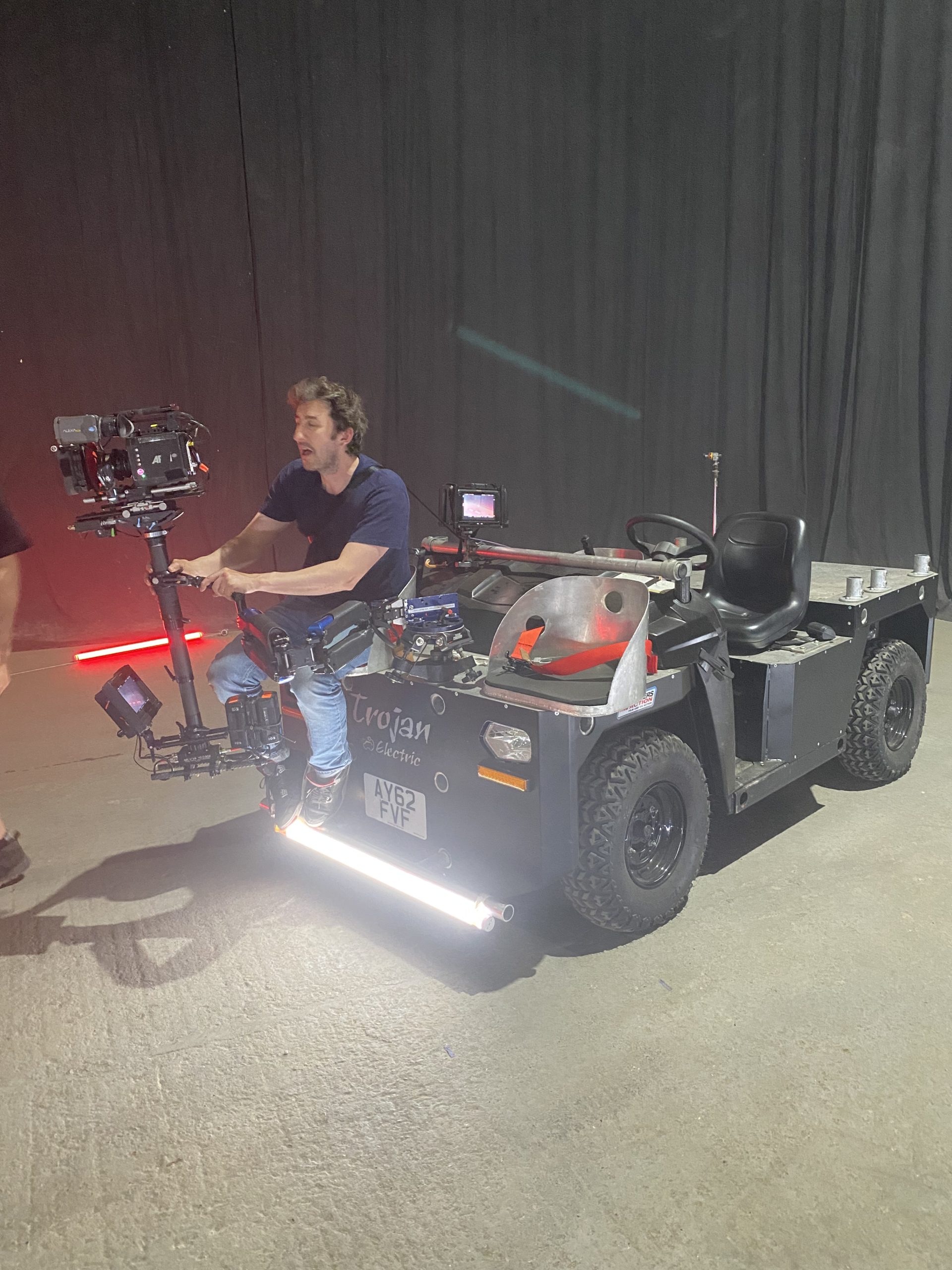

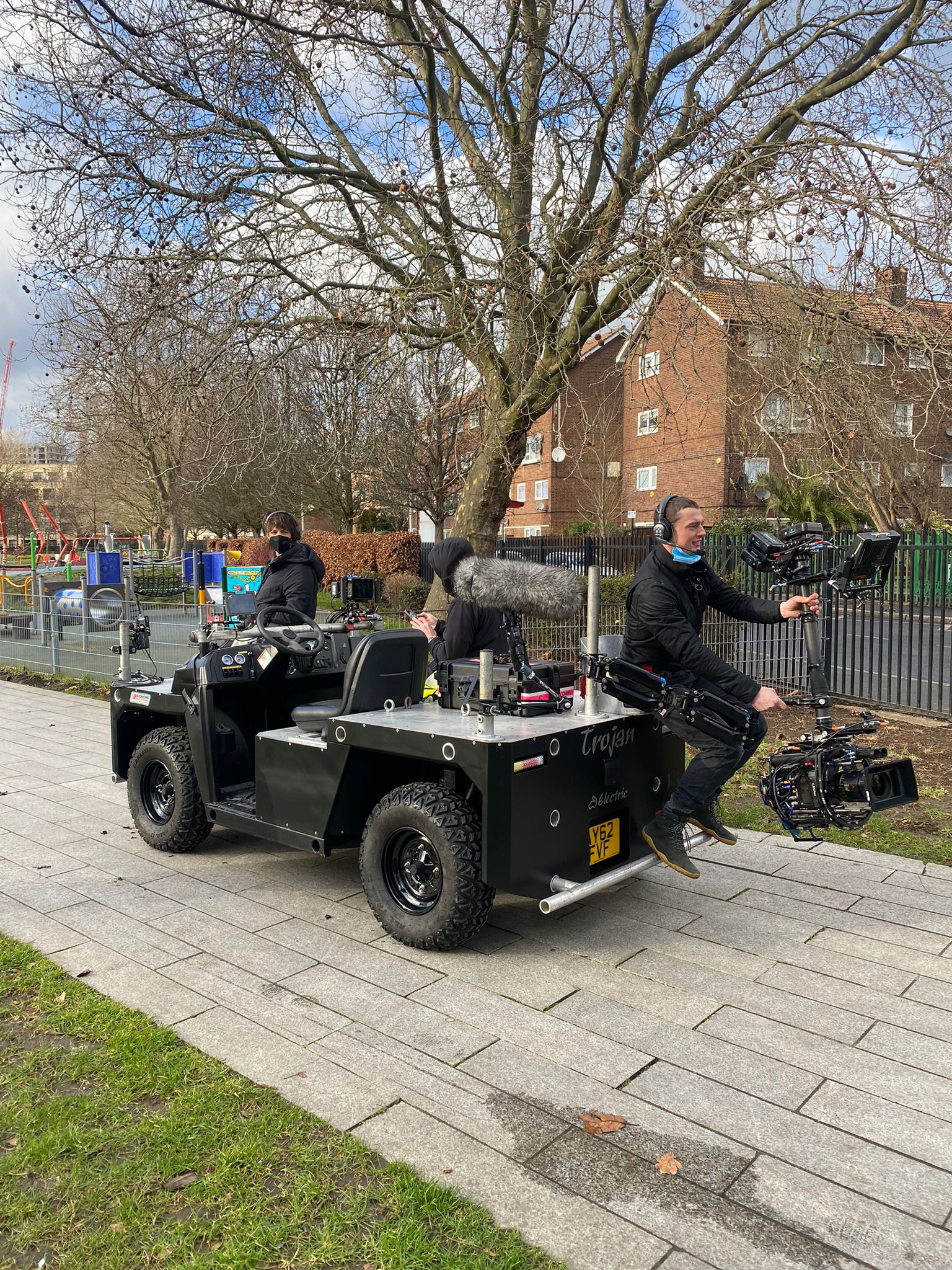

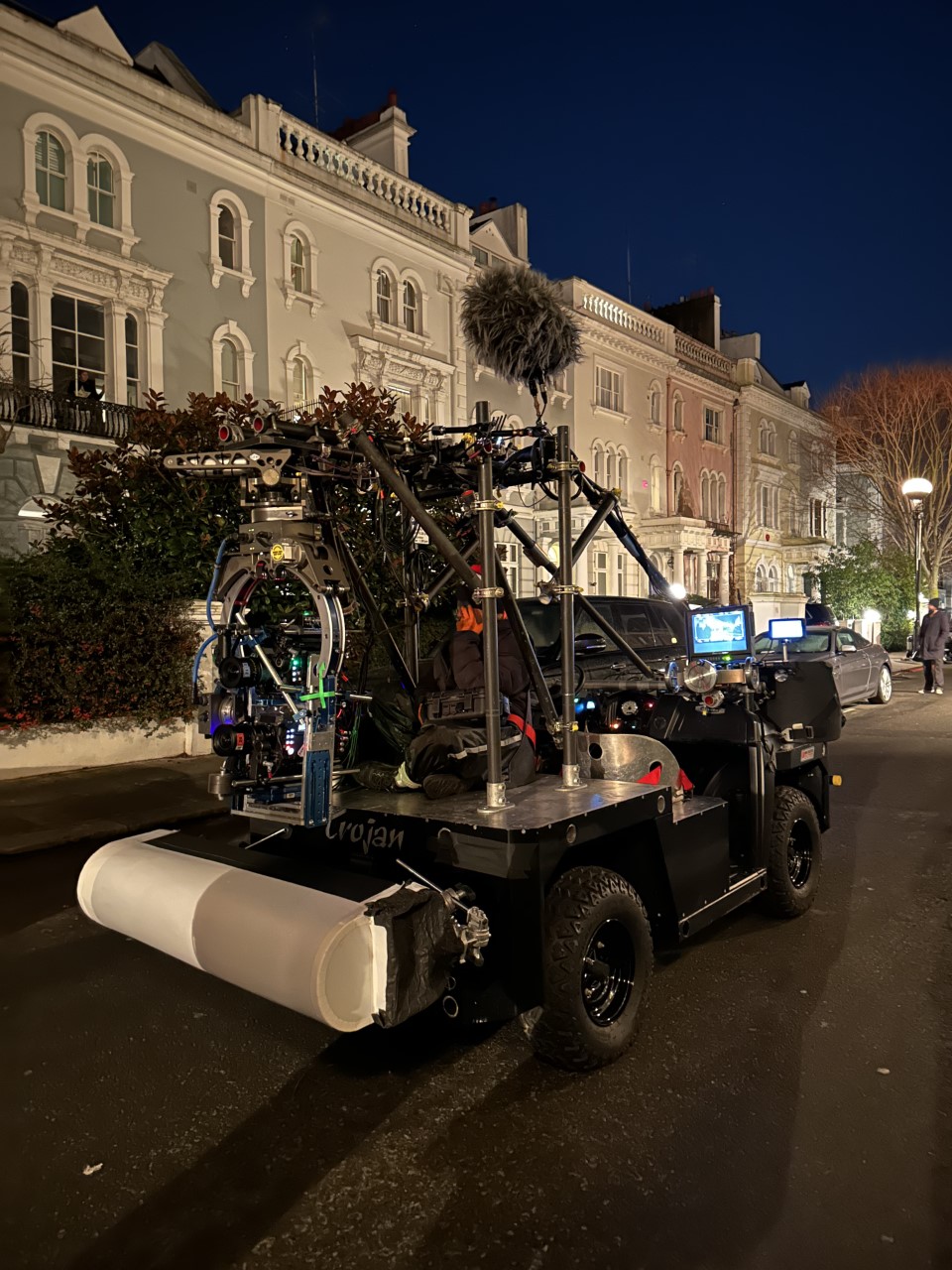

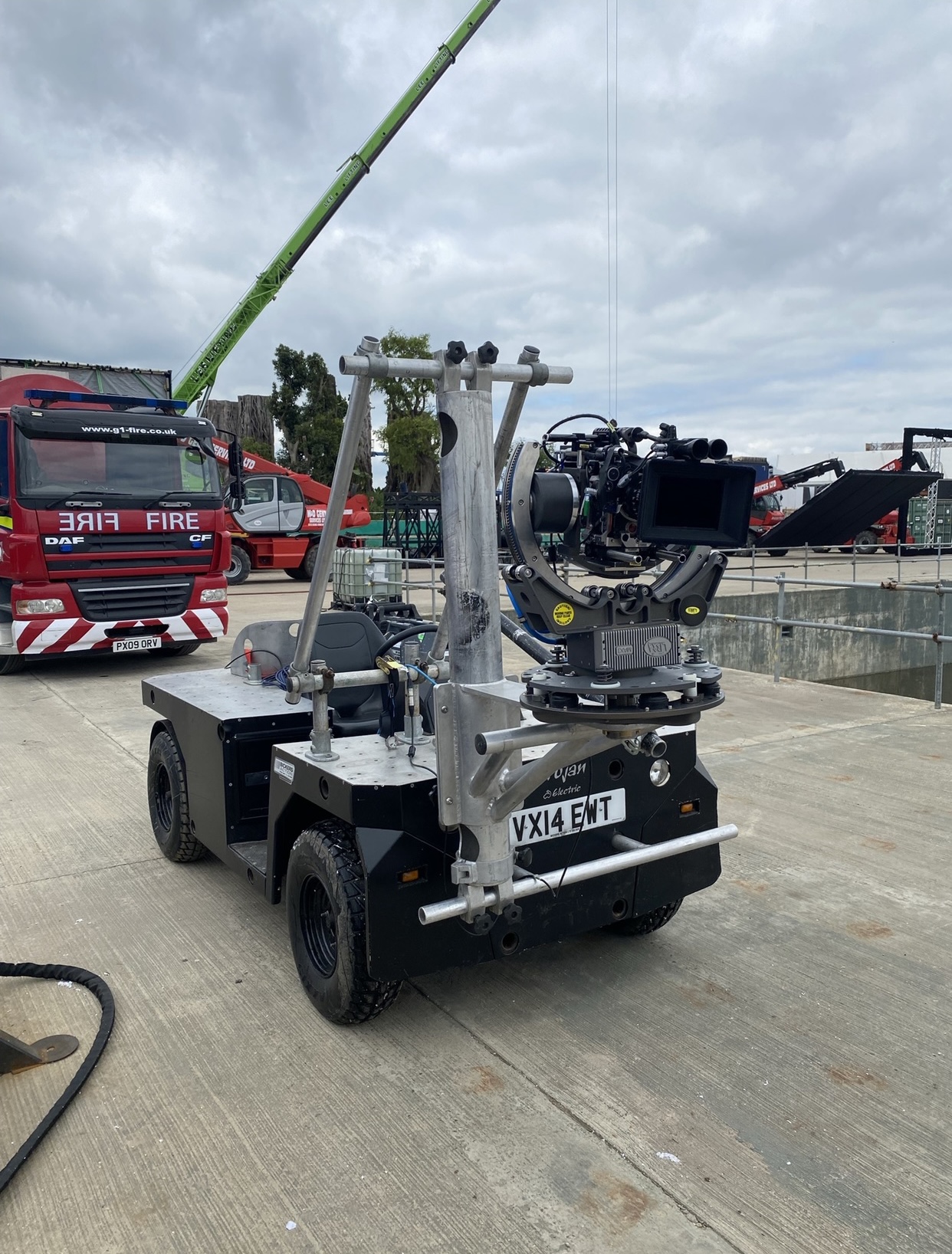

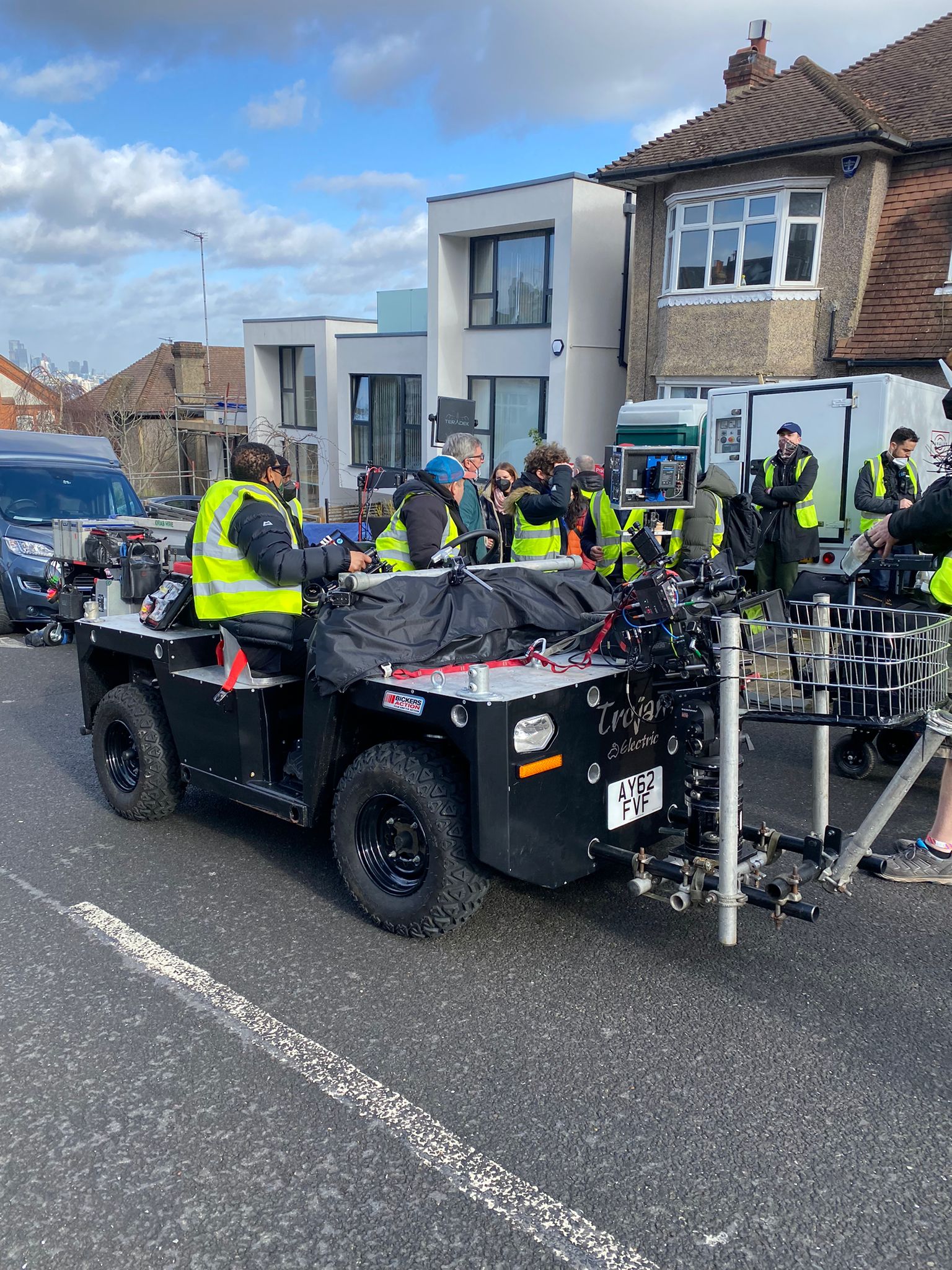

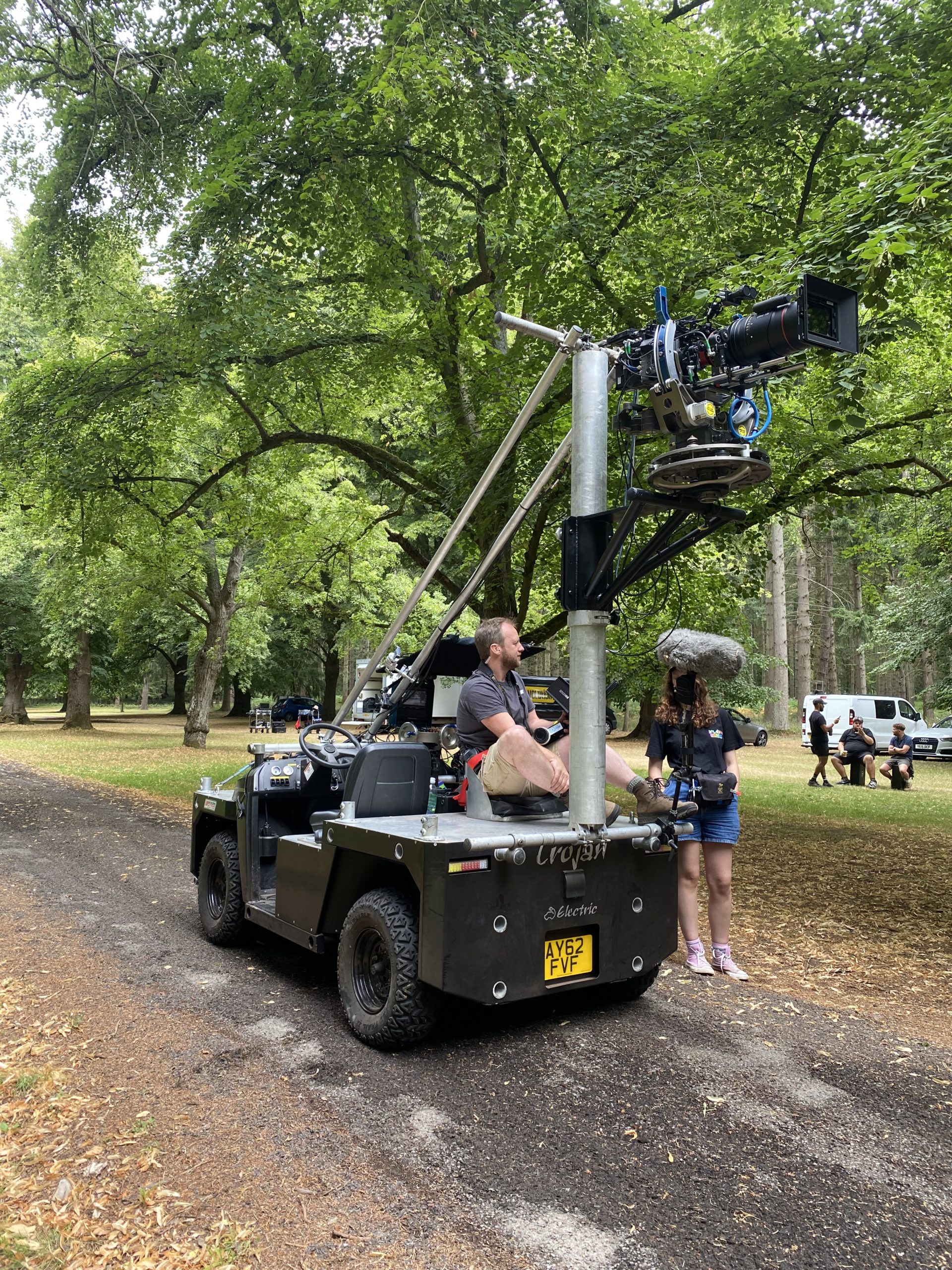

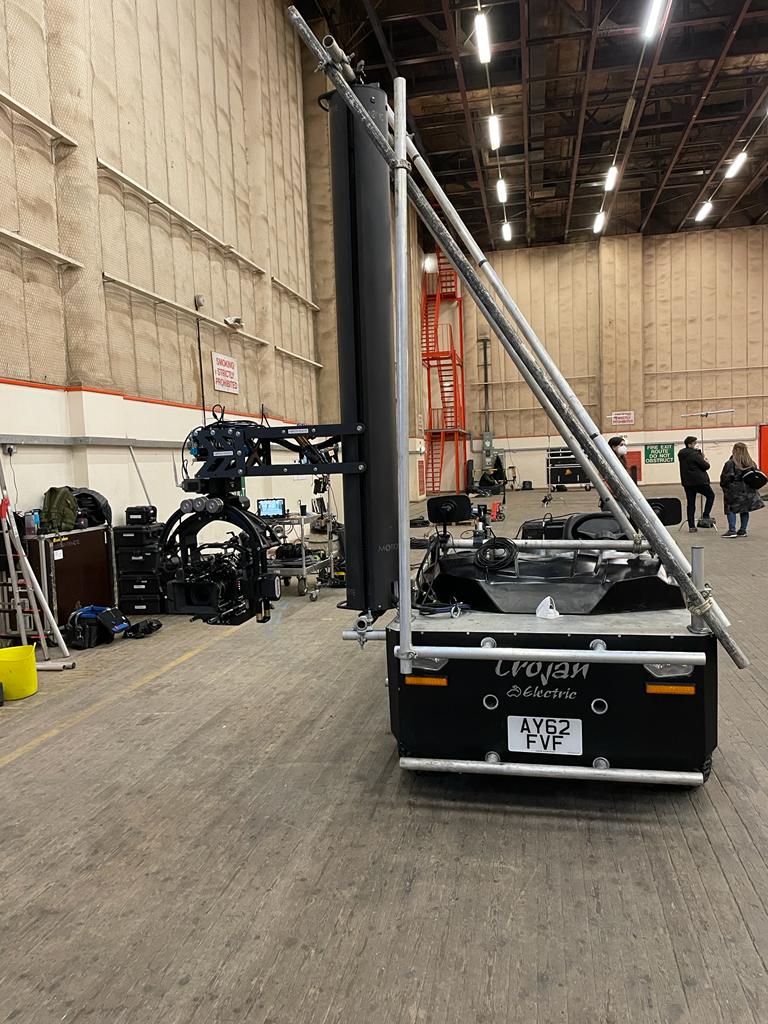

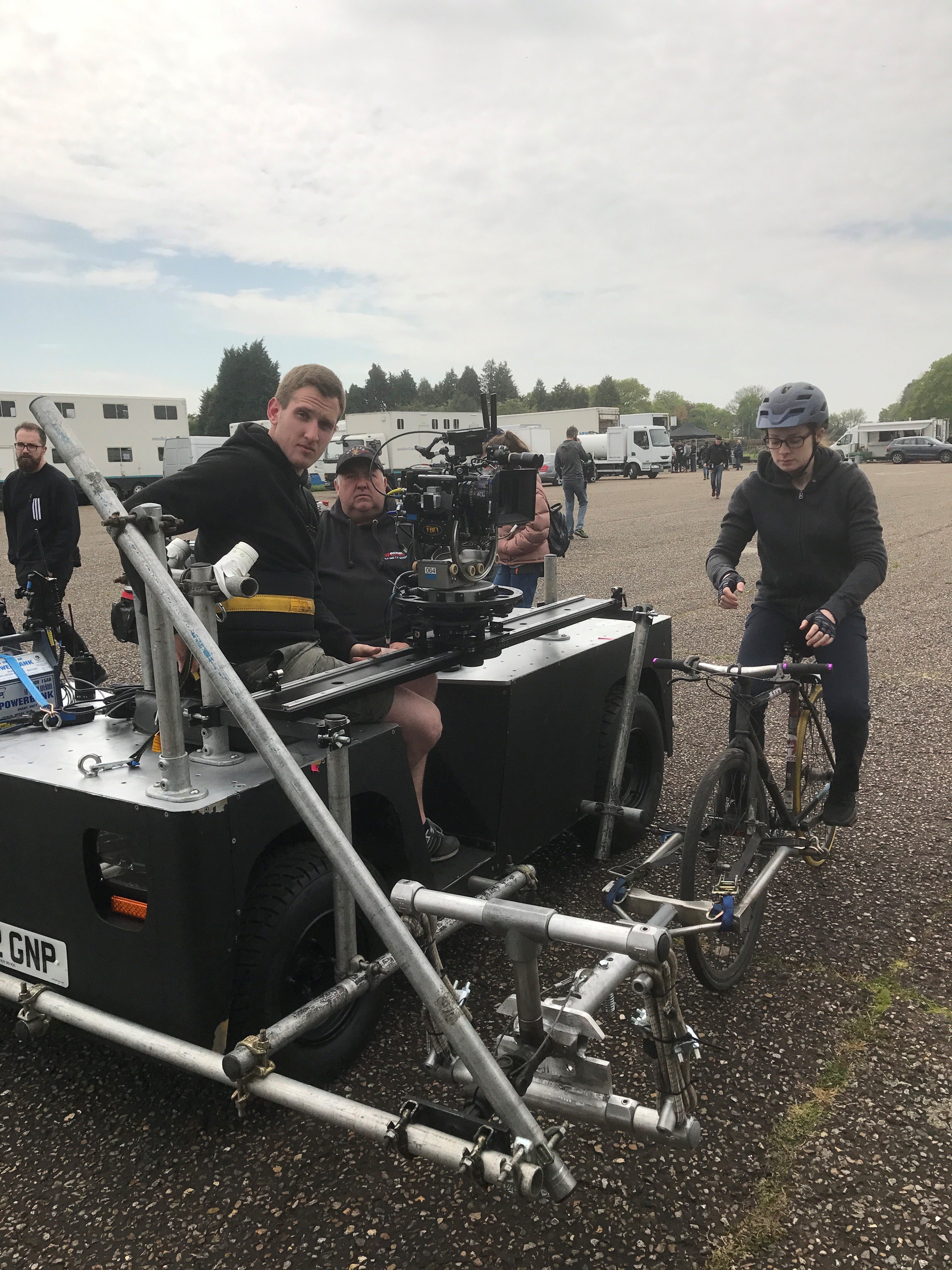

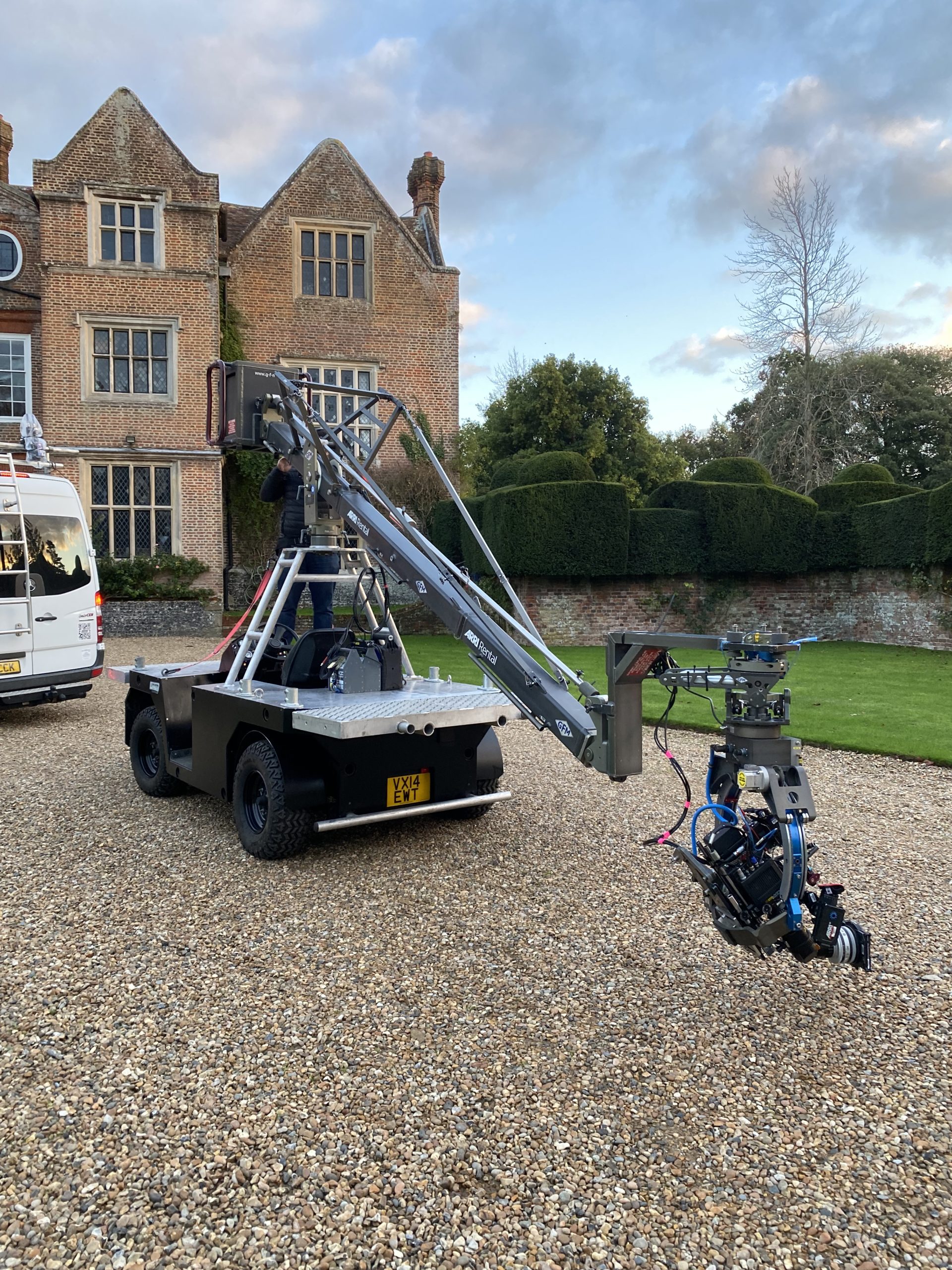

The vehicle is virtually Silent, making it the perfect vehicle when recording sound, also ideal for filming in indoor spaces as it produces no fumes. It is capable of tracking at low speed and up to 50 Kmh (Standard speed is 40 Kmh). The Independent Fully Adjustable Air Suspension can carry 3 crew members plus precision driver and a good payload for equipment / Jib Arms. Its low line of sight makes it unobtrusive and can be easily hidden in flowing traffic for example. The Left Hand Drive Driving position allows the camera to be easily rigged for POV Shots (point of view shots ) from the Passenger’s seat which is fitted with a multi drilled  Cheese plate with M12 Threaded holes. The vehicle has scaffold safety rails that double as rigging points for camera and lighting, together with a Multi drilled and threaded rigging platform plates front and rear. It is road registered. Additional mounts can be made for specific requirements.

Driven by one of our Precision Tracking Vehicle Drivers.

ETV = Fully Electric Tracking Vehicle

Bickers Version of the Shadow Tracker,  Panatracker  or Grip  Trix ETV



Standard Equipment Optional Equipment
2 x Safety harnesses Remote Head Mount / Post Rig
2 x Operator Seats with Lap Belts Scaffold Rigging Kit
2x Front and Rear Platform Camera Crane Mounting Kit
Dimensions / Weights
Overall Length 3.0m
Width 1.5m
Height 1.5m with Frame Attached
Rigging Plate Front and Back Height 850mm
Weight 580kg
